WINDSHIELD WASHER NOZZLE ADJUSTMENT

id091900700900

Caution

•  Inserting a wire or a tool with a sharp edge into the windshield washer nozzle hole and adjusting the nozzle angle with a strong force may damage the inside of the nozzle. Do not apply strong force and carefully adjust the windshield washer nozzle.

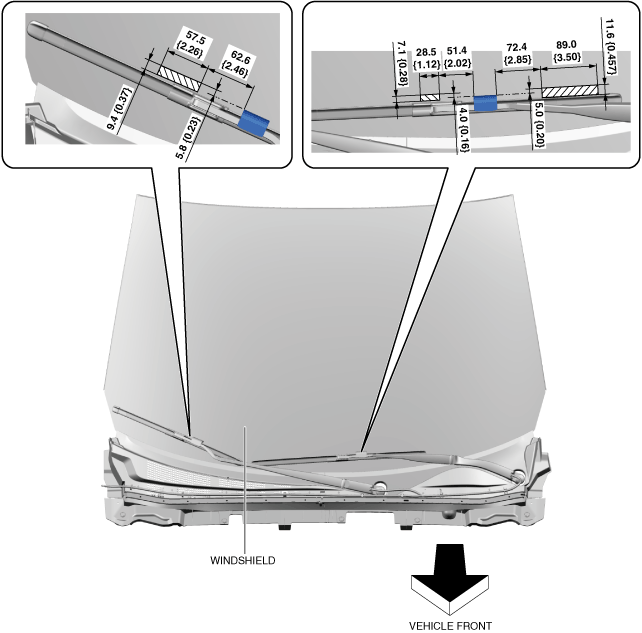

1.  Insert a needle or a thin tool into the windshield washer nozzle hole, and adjust the windshield washer nozzle so that washer fluid is sprayed within the range shown in the figure.

a30zzw00003851

a30zzw00003852
