WIPER AND WASHER SWITCH INSPECTION

id091900702700

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the wiper and washer switch. (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)

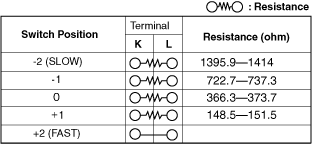

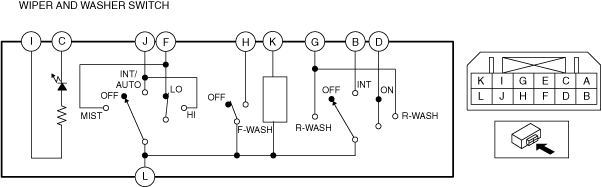

3.  Verify that the continuity between the wiper and washer switch terminals is as indicated in the table.

a30zzw00006916

am3zzw00027447

am3zzw00027448

am3zzw00027449

ac30zw00002589

•  If the continuity is not as indicated in the table, replace the wiper and washer switch.

(See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)
