REAR WIPER MOTOR

id091900703700

Purpose

• The rear wiper motor operates the rear wiper arm and blade using the motor rotation.

Function

• The rear wiper motor generates rotation force using the current from the ESU which is input according to the rear wiper and washer switch operation.

Construction

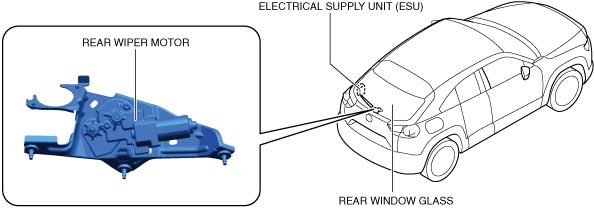

a30zzn00000758

Operation

1. The rear wiper motor rotates (1) based on the electrical current from the ESU which is input according to the rear wiper and washer switch operation.

2. When the motor rotates, rotation force is transmitted to the rear wiper arm and blade to operate (2) it.

3. When the rear wiper arm and blade is operated to the park position, the autostop switch turns off (3) and the rear wiper arm and blade stops (4) at the park position.

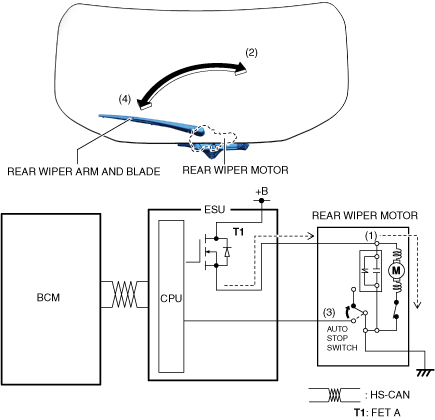

a30zzn00000759
