WASHER MOTOR

id091900703900

Purpose/Function

• The washer motor supplies washer fluid in the washer tank to the washer nozzles.

Structure/Construction

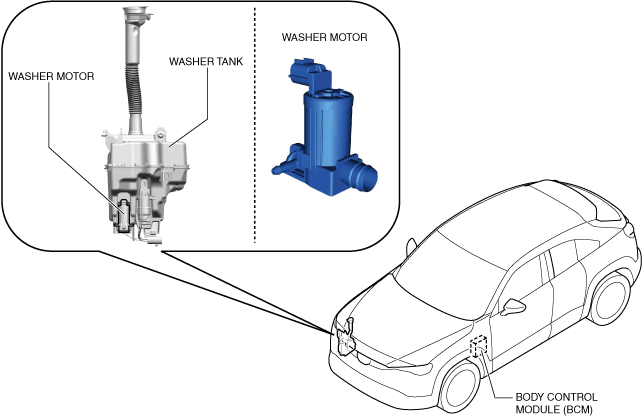

• The washer motor is located on the washer tank.

a30zzn00000760

Operation

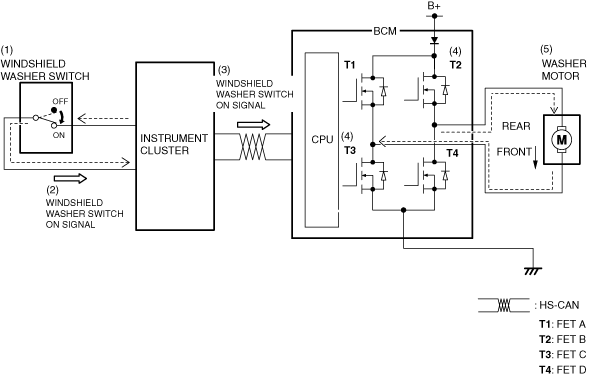

1. When the front washer switch turns on (1), the instrument cluster detects (2) a front washer switch on signal.

2. The instrument cluster sends (3) the front washer switch on signal to the BCM via CAN communication.

3. When the BCM receives the windshield washer switch on signal, it turns FET B and FET C on (4).

4. When FET B and FET C turn on, a ground circuit for the front washer relay is established and the washer motor operates (5) to supply washer fluid to the front washer nozzle.
