ANTENNA FEEDER NO.2 REMOVAL/INSTALLATION

id092000702100

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

3.  Disconnect the connector and remove the wiring harness clips A and B.

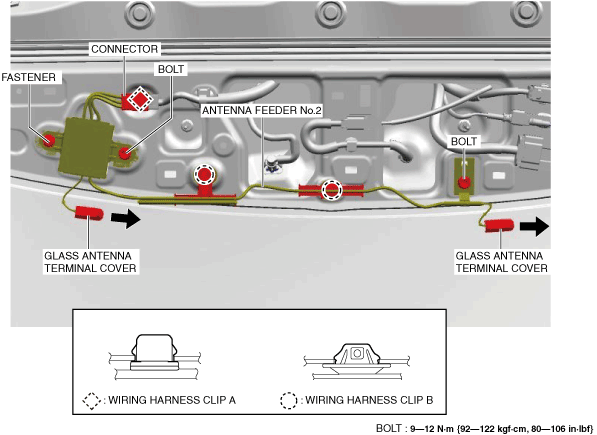

a30zzw00006011

4.  Remove the glass antenna terminal covers in the direction of the arrows shown in the figure.

5.  Remove the bolts.

6.  Remove the fastener.

7.  Remove antenna feeder No.2.

8.  Install in the reverse order of removal.
