MAIN FUSE REMOVAL/INSTALLATION

id092100700500

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

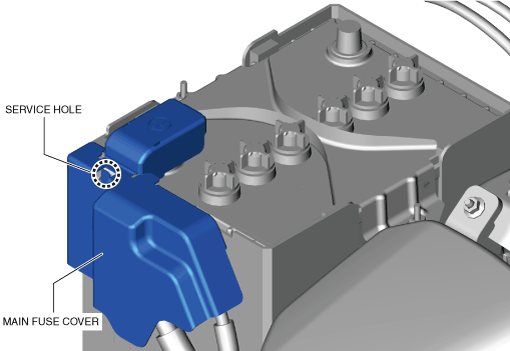

2.  Insert a tape-wrapped flathead screwdriver into the service hole in the position shown in the figure.

ac30zw00002142

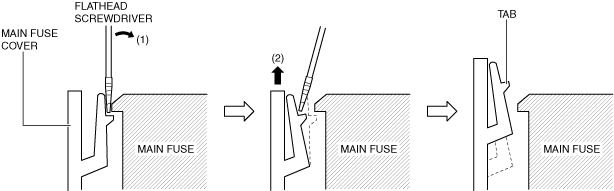

3.  Move a flathead screwdriver in the direction of arrow (1) shown in the figure, pull up the main fuse cover in the direction of arrow (2) shown in the figure, and detach the main fuse cover tab from the main fuse.

am3uuw00015070

4.  Remove the main fuse cover.

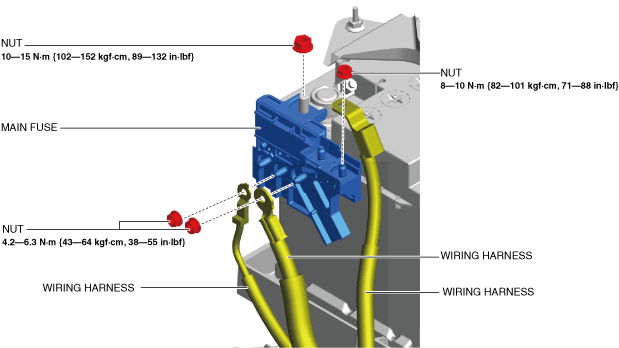

5.  Remove the nuts.

a30zzw00003995

6.  Remove the main fuse.

7.  Install in the reverse order of removal.
