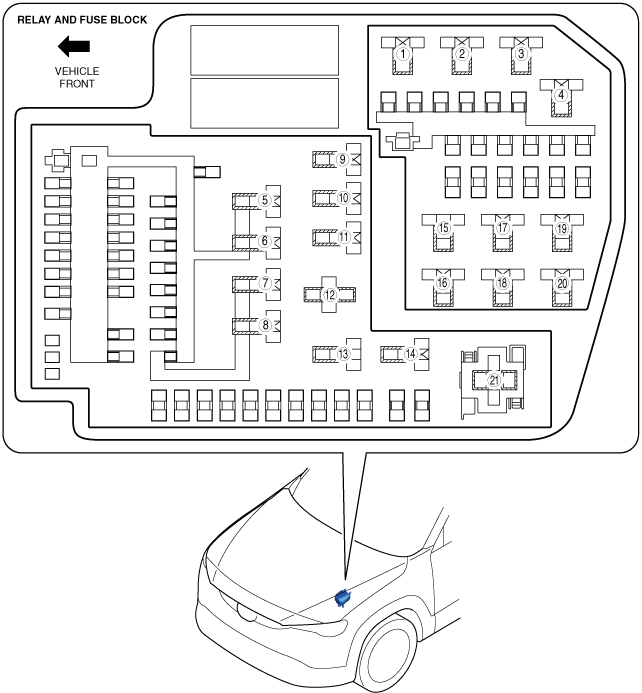

RELAY LOCATION [(E)]
id0921007007y2
L.H.D.
a30zzw00007380
|
|
1
|
Windshield wiper de-icer relay
|
|
2
|
Headlight cleaner relay
|
|
3
|
Main relay No.1
|
|
4
|
—
|
|
5
|
IG1 relay No.1
|
|
6
|
IG1 relay No.2
|
|
7
|
—
|
|
8
|
ACC relay
|
|
9
|
Rear window defogger relay
|
|
10
|
Headlight relay
|
|
11
|
Horn relay
|
|
12
|
Blower relay
|
|
13
|
QBC contactor drive relay (+)
|
|
14
|
QBC contactor drive relay (-)
|
|
15
|
Charger relay
|
|
16
|
Inverter relay
|
|
17
|
—
|
|
18
|
Electric water pump relay
|
|
19
|
A/C relay
|
|
20
|
Main relay No.2
|
|
21
|
Cooling fan relay
|
R.H.D.
a30zzw00006824
|
|
1
|
Windshield wiper de-icer relay
|
|
2
|
—
|
|
3
|
Main relay No.1
|
|
4
|
—
|
|
5
|
IG1 relay No.1
|
|
6
|
IG1 relay No.2
|
|
7
|
—
|
|
8
|
ACC relay
|
|
9
|
Rear window defogger relay
|
|
10
|
Headlight relay
|
|
11
|
Horn relay
|
|
12
|
Blower relay
|
|
13
|
QBC contactor drive relay (+)
|
|
14
|
QBC contactor drive relay (-)
|
|
15
|
Charger relay
|
|
16
|
Inverter relay
|
|
17
|
—
|
|
18
|
Electric water pump relay
|
|
19
|
A/C relay
|
|
20
|
Main relay No.2
|
|
21
|
Cooling fan relay
|
