BACKUP POWER SUPPLY INSPECTION
id092100701700
1. Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Remove the backup power supply.(See BACKUP POWER SUPPLY REMOVAL/INSTALLATION [(E)].)
3. Connect the backup power supply connector.
4. Connect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)
5. Verify that the voltages of each of the terminals are as indicated in the terminal voltage table (reference).

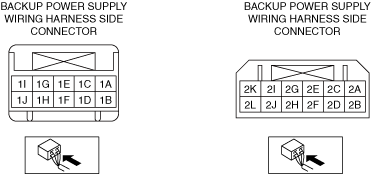

Terminal Voltage Table (Reference)
a30zzw00000959
|
|
Terminal |
Signal name |
Connected to |
Test condition |
Voltage (V) |
Inspection item |
|
|---|---|---|---|---|---|---|
|
1A
|
GND
|
Body ground
|
Under any condition
|
Approx. 0
|
• GND point
• Related wiring harness
|
|
|
1B
|
GND
|
Body ground
|
Under any condition
|
Approx. 0
|
• GND point
• Related wiring harness
|
|
|
1D
|
Info
|
Electrical supply unit (ESU)
|
Under any condition
|
Hi : Approx. 9
Low : Approx. 5
|
• Electrical supply unit (ESU)
• Related wiring harness
|
|
|
1F
|
Power supply
|
Door-electrical supply unit (passenger's side)
|
Under any condition
|
11.7 or less
|
• Door-electrical supply unit (passenger's side)
• Related wiring harness
|
|
|
1G
|
Power supply
|
F9 15A fuse
|
Under any condition
|
B+
|
• F9 15A fuse
• Related wiring harness
|
|
|
1I
|
Power supply (IG1)
|
F49 15A fuse
|
Switch the main power ON (READY off or on)
|
B+
|
• F49 15A fuse
• Related wiring harness
|
|
|
Switch the main power OFF
|
1.0 or less
|
|||||
|
1J
|
Power supply
|
Door-electrical supply unit (driver's side)
|
Under any condition
|
11.7 or less
|
• Door-electrical supply unit (driver's side)
• Related wiring harness
|
|
|
2B
|
Power supply
|
PCM
|
Under any condition
|
Hi : 3.5 or more
Low : 0.7 or less
|
• PCM
• Related wiring harness
|
|
|
2D
|
Power supply
|
• PCM
• Drive inverter (DMCM)
|
Under any condition
|
11.7 or less
|
• PCM
• Drive inverter (DMCM)
• Related wiring harness
|
|
