ACTIVE DRIVING DISPLAY DISASSEMBLY/ASSEMBLY

id092200701200

Caution

•  When disassembling the active driving display, if a strong impact is applied, such as dropping the active driving display, the inside of the active driving display may be damaged and may not operate normally. When disassembling the active driving display, perform the procedure on a workbench and clean cloth being careful not to drop it.

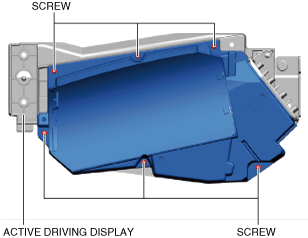

1.  Remove the screws.

a30zzw00003937

2.  Remove the lens.

a30zzw00003938

3.  Assemble in the reverse order of disassembly.
