EMERGENCY CALL SPEAKER/MICROPHONE REMOVAL/INSTALLATION [(E)]

id0922007025x2

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front map light. (See FRONT MAP LIGHT REMOVAL/INSTALLATION [(E)].)

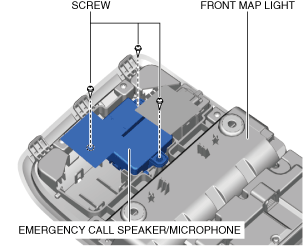

3.  Remove the screws.

a30zzw00003957

4.  Remove the emergency call speaker/microphone.

5.  Install in the reverse order of removal.
