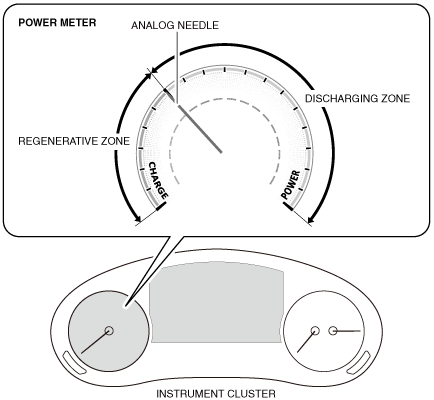

•  The power meter notifies the driver of the discharging power amount and regenerative braking power amount of the high voltage battery.

•  The instrument cluster displays the discharging power amount and regenerative braking power amount based on the power meter signal sent from the PCM via CAN communication.

•  An analog needle display power meter with a stepping motor mechanism has been adopted.

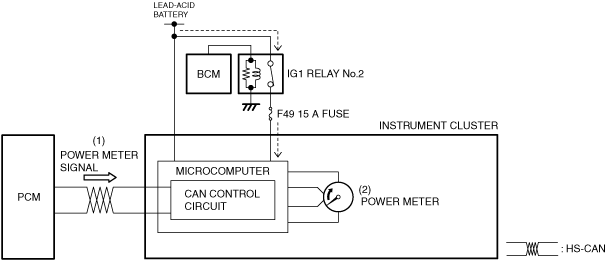

1.  When the instrument cluster receives (1) a power meter signal from the PCM via CAN communication with the main power ON (READY on or off), it displays (2) the current discharging power amount or regenerative braking power amount.
