ODOMETER/TRIPMETER
id092200703400
Purpose
• The odometer/tripmeter notifies the driver of the total travel distance or the traveled distance over a specific interval.
Functions
• The instrument cluster displays the traveled distance based on the traveled distance signal from the body control module (BCM).
Odometer calculation function
-
• The instrument cluster displays the total traveled distance based on the total traveled distance signal from the body control module (BCM).
• The total traveled distance which can be displayed is from 0 to 999999.
Tripmeter A/B calculation function
-
• The instrument cluster displays the traveled distance based on the traveled distance signal from the body control module (BCM) and the traveled distance from when the tripmeter is reset.
• There are A and B tripmeters and the display for each can be switched with each press of the tripmeter switch.
• If the tripmeter switch is continuously pressed for approx. 1.5 s or more, the tripmeter traveled distance is reset (0).
• The traveled distance which can be displayed is from 0 to 9999.9.
Structure/Construction

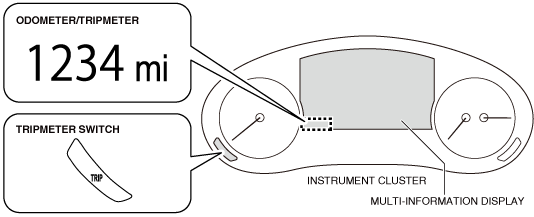

• The odometer/tripmeter is displayed in the multi-information display of the instrument cluster.
Operation

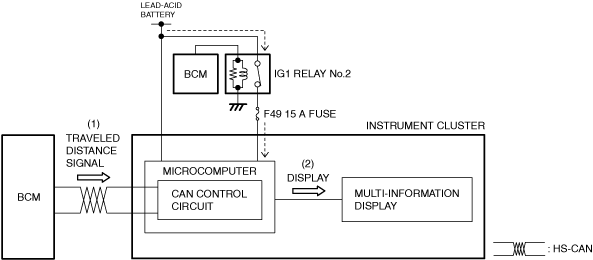

1. The instrument cluster displays (2) the total traveled distance (odometer) data and the traveled distance (tripmeter) data over a specific interval in the multi-information display when it receives (1) the total traveled distance (odometer) signal and the traveled distance (tripmeter) signal over a specific interval from the body control module (BCM) with the main power switched ON (READY on).
Odometer/tripmeter switching operation
-

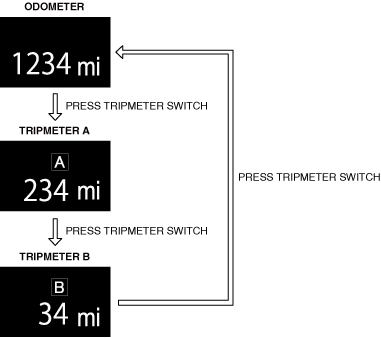

• The instrument cluster switches the display content of the multi-information display as follows based on the tripmeter switch operation signal.
