PARKING ASSIST UNIT (ULTRASONIC)

id092200704400


Purpose/Function

•  The parking assist unit (ultrasonic) controls multiple systems based on the input/output signals.
•  The controlled functions are as follows:

Control table

Control

Content

Reference
Parking sensor system
The parking sensor system uses ultrasonic sensors to detect obstructions around the vehicle, and notifies the driver of the approximate distance from the vehicle to the surrounding obstruction using sound and an obstruction detection indication while the vehicle is driven at a low speed such as parking in a garage or parallel parking.
(See PARKING SENSOR SYSTEM.)
Smart brake support (SBS) [rearward detection]
The smart brake support (SBS) [rear crossing] is a system which detects vehicles crossing at the rear of the vehicle when backing out of a parking space for collision avoidance and damage reduction.
(See SMART BRAKE SUPPORT (SBS) [REARWARD DETECTION].)


Structure/Construction

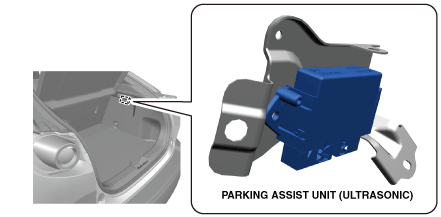

•  The parking assist unit (ultrasonic) is installed inside the trunk side trim (RH).
a30zzn00000678

Operation

•  For the parking assist unit (ultrasonic) operation, refer to the following systems.
―  Parking sensor system (See PARKING SENSOR SYSTEM.)
―  Smart brake support (SBS) [rearward detection] (See SMART BRAKE SUPPORT (SBS) [REARWARD DETECTION].)
