EMERGENCY CALL SWITCH [(E)]

id0922007060x2


Purpose

•  Notifies the emergency call unit of the user's emergency call switch operation.
•  The emergency call switch notifies the user of the system operation status using the illumination/flashing pattern of the built-in indicator.

Functions

•  The indicator of the emergency call switch is turned on/flashes in the pattern shown in the following table.

Status

Indicator

Green

Red
Normal
—
—
Malfunction
—
ON
Diagnosis
ON
ON
Dialing to call center
—
While sending accident information/vehicle information
—
Voice call starts
ON
—
During voice call
ON
—
Connection failed
ON


Structure/Construction

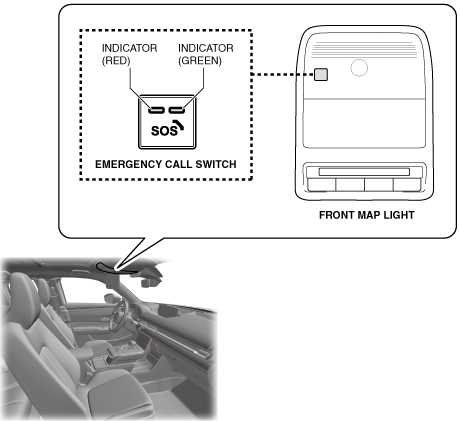

•  The emergency call switch is located on the front map light.
•  The indicators (green/red) are located on the emergency call switch.
a30zzn00000701

Operation

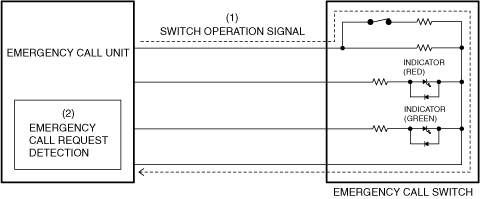

1.  When the emergency call switch is operated, a switch operation signal is sent (1) to the emergency call unit.

2.  When the emergency call switch ON/OFF signal from the emergency call switch is received, the emergency call unit detects (2) an emergency call request from the user.

a30zzn00000702
