CHARGING STATUS DISPLAY

id092200707200

Outline

• The charging status display notifies the driver of the charging status of the high voltage battery.

Functions

• The instrument cluster displays the charging status based on the charging status signal from the PCM.

Structure/Construction

• The charging status is displayed in the multi-information display of the instrument cluster.

― High voltage battery level

― Remaining time to complete charging

― Vehicle speed (main power switched ON)

a30zzn00000737

Operation

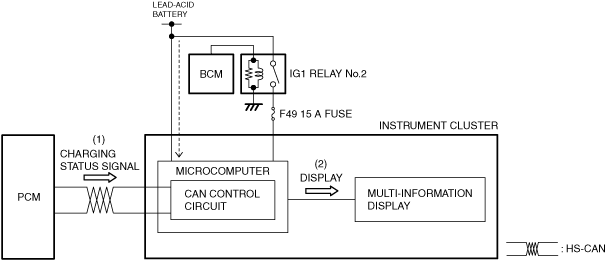

1. The instrument cluster displays (2) the charging status in the multi-information display when it receives (1) the charging status signal from the PCM with the onboard charging cable connected to the vehicle.

a30zzn00000738
