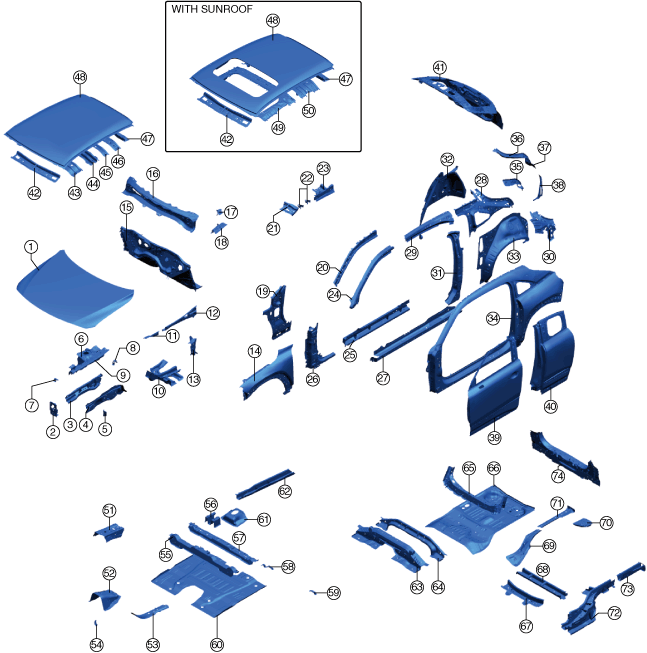

BODY COMPONENTS CONSTRUCTION [CONSTRUCTION]

id098007739700

a30zzb00000138

No.

Part name

Ultra high-tension steel

High-tension steel

Rust proof steel

Thickness (mm) {in}

X:Applied

-:Not applied

Strength (MPa) {kgf/cm2, psi}

X:Applied

-:Not applied

X:Applied

-:Not applied

1

Hood (outer panel)

-

-

X

X

0.65 {0.0256}

2

Bumper bracket component

Bumper bracket (upper)

X

590 {6016, 85572}

-

-

2.60 {0.102}

Bumper bracket (lower)

Inner

-

-

X

X

1.80 {0.0709}

Outer

-

-

X

X

1.80 {0.0709}

3

Front side frame (inner) component

Front side frame (inner)

X

780 {7954, 113130}

-

X

1.60 {0.0630}

Front frame (inner) reinforcement

-

-

-

-

1.60 {0.0630}

Inner frame reinforcement

Front

-

-

-

-

1.00 {0.0394}

Rear

-

-

-

-

1.00 {0.0394}

Lower

X

590 {6016, 85572}

-

X

2.30 {0.0906}

4

Front side frame (outer) component

Front side frame (outer)

X

780 {7954, 113130}

-

X

1.60 {0.0630}

Brake hose bracket

-

-

-

-

3.60 {0.142}

5

Light bracket

-

-

-

X

1.20 {0.0472}

6

Wheel apron component

Front wheel apron

-

-

X

X

1.20 {0.0472}

Wheel apron (rear)

-

-

-

X

1.20 {0.0472}

Apron reinforcement

-

-

-

X

1.60 {0.0630}

Wheel apron reinforcement (rear)

-

-

-

X

1.00 {0.0394}

Suspension housing reinforcement

X

590 {6016, 85572}

-

X

3.20 {0.126}

Harness bracket

-

-

-

X

1.20 {0.0472}

Suspension housing (upper)

-

-

X

X

2.30 {0.0906}

Suspension housing (lower)

-

-

-

X

0.80 {0.031}

Wheel apron (rear) reinforcement

X

590 {6016, 85572}

-

X

1.40 {0.0551}

Apron reinforcement No.3

-

-

-

X

1.00 {0.0394}

7

Headlight bracket

-

-

-

X

0.60 {0.024}

8

Front fender junction

-

-

-

X

0.80 {0.031}

9

Apron reinforcement (upper) component

Shroud upper reinforcement

-

-

X

X

0.90 {0.035}

Apron reinforcement (upper)

-

-

-

X

1.20 {0.0472}

Apron upper gusset No.1

-

-

-

X

0.80 {0.031}

Apron upper gusset No.2

-

-

-

X

0.80 {0.031}

10

Front frame (rear) component

Torque box

Front

-

-

X

X

1.60 {0.0630}

Rear

-

-

X

X

1.40 {0.0551}

Front frame (rear)

X

980 {9993, 142137}

-

X

2.30 {0.0906}

Lower arm bracket

-

-

-

X

1.60 {0.0630}

Front B frame reinforcement

X

590 {6016, 85572}

-

X

1.80 {0.0709}

11

Apron reinforcement (lower) (front)

X

590 {6016, 85572}

-

X

1.00 {0.0394}

12

Apron reinforcement (lower) (rear)

X

780 {7954, 113130}

-

X

1.60 {0.0630}

13

Cowl side reinforcement (rear)

X

780 {7954, 113130}

-

X

1.80 {0.0709}

14

Front fender panel

-

-

-

X

0.70 {0.028}

15

Dash lower panel component

Dash lower panel

Front

-

-

X

X

1.20 {0.0472}

Rear

-

-

X

X

2.30 {0.0906}

Upper

-

-

-

X

1.40 {0.0551}

Side

X

980 {9993, 142137}

-

X

1.20 {0.0472}

Tunnel junction No.1

-

-

-

X

1.40 {0.0551}

Dash lower reinforcement

Upper

X

590 {6016, 85572}

-

-

0.80 {0.031}

Lower

-

-

-

-

1.40 {0.0551}

16

Dash and cowl component

Dash upper panel

-

-

-

X

0.65 {0.0256}

Cowl upper panel

-

-

X

-

1.20 {0.0472}

End plate

-

-

-

-

0.50 {0.0197}

17

Cowl upper plate

X

590 {6016, 85572}

-

X

2.30 {0.0906}

18

Dash upper reinforcement

X

590 {6016, 85572}

-

X

1.80 {0.0709}

19

Hinge pillar (inner) component

Dashboard bracket No.1

X

590 {6016, 85572}

-

-

2.00 {0.0787}

Hinge pillar (inner)

X

1,180 {12032, 171145}

-

X

2.00 {0.0787}

20

Front pillar (inner)

X

1,310 {13358, 190000}

-

-

1.80 {0.0709}

21

Front pillar upper reinforcement component

Front pillar upper reinforcement

Outer

X

780 {7954, 113130}

-

-

1.20 {0.0472}

Inner

-

-

-

-

0.70 {0.028}

Fixing plate

-

-

-

-

1.40 {0.0551}

22

Nut plate (front)

-

-

-

-

1.20 {0.0472}

23

Roof rail (inner) component

Roof rail (inner)

X

1,310 {13358, 190000}

-

-

1.80 {0.0709}

Roof corner gusset

X

590 {6016, 85572}

-

-

1.80 {0.0709}

24

Front pillar reinforcement component

Front side reinforcement

X

1,500 {15296, 217557}

-

X

2.00 {0.0787}

Front pillar reinforcement

Inner, upper

X

1,500 {15296, 217557}

-

X

1.80 {0.0709}

Inner, lower

X

780 {7954, 113130}

-

-

1.00 {0.0394}

25

Side sill (inner) component

Side sill (inner)

X

1,180 {12032, 171145}

-

X

1.60 {0.0630}

Side sill gusset

X

780 {7954, 113130}

-

-

1.80 {0.0709}

Side sill reinforcement

Front

-

-

-

X

1.80 {0.0709}

Upper

-

-

-

-

1.60 {0.0630}

Inner

X

1,310 {13358, 190000}

-

-

2.00 {0.0787}

No.1

X

980 {9993, 142137}

-

X

1.00 {0.0394}

No.2

-

-

-

-

1.00 {0.0394}

No.3

-

-

-

-

1.00 {0.0394}

No.4

-

-

-

-

1.00 {0.0394}

26

Hinge reinforcement component

Hinge reinforcement

X

1,180 {12032, 171145}

-

-

1.60 {0.0630}

Hinge pillar reinforcement

X

1,180 {12032, 171145}

-

-

2.00 {0.0787}

Hinge upper reinforcement

X

980 {9993, 142137}

-

-

1.40 {0.0551}

Hinge lower reinforcement

X

980 {9993, 142137}

-

-

1.40 {0.0551}

Checker reinforcement

X

1,180 {12032, 171145}

-

-

1.40 {0.0551}

Hinge lower gusset

X

980 {9993, 142137}

-

-

1.40 {0.0551}

Front fender set bracket

-

-

-

-

1.00 {0.0394}

27

Side sill reinforcement component

Side sill reinforcement

X

1,180 {12032, 171145}

-

X

1.40 {0.0551}

Side sill reinforcement gusset

No.1

X

980 {9993, 142137}

-

X

1.20 {0.0472}

No.2

X

980 {9993, 142137}

-

X

1.20 {0.0472}

No.3

X

980 {9993, 142137}

-

X

1.20 {0.0472}

Side sill reinforcement (center)

X

980 {9993, 142137}

-

-

1.20 {0.0472}

Side sill reinforcement (inner)

X

980 {9993, 142137}

-

X

1.20 {0.0472}

Side sill reinforcement (front)

Inner

X

1,180 {12032, 171145}

-

-

1.40 {0.0551}

Outer

-

-

-

X

1.00 {0.0394}

28

Hinge reinforcement component

Roof rail (inner, rear)

X

590 {6016, 85572}

-

-

1.20 {0.0472}

Nut plate (rear)

-

-

-

-

1.20 {0.0472}

Roof rack bracket

-

-

-

-

1.20 {0.0472}

Rear pillar (inner)

-

-

-

X

0.65 {0.0256}

Rear side panel

-

-

-

-

0.60 {0.024}

Corner reinforcement

X

590 {6016, 85572}

-

-

1.20 {0.0472}

Corner (upper) plate

-

-

-

-

1.40 {0.0551}

Corner junction

-

-

-

X

0.65 {0.0256}

29

Roof rail reinforcement component

Roof rail reinforcement

X

1,500 {15296, 217557}

-

X

1.40 {0.0551}

Roof rail reinforcement inner

X

1,500 {15296, 217557}

-

X

1.20 {0.0472}

Roof rail reinforcement

-

-

-

-

0.80 {0.031}

30

C-pillar reinforcement (rear) component

C-pillar reinforcement (Rear)

-

-

-

-

1.00 {0.0394}

Roof rail reinforcement (Rear)

X

780 {7954, 113130}

-

-

0.90 {0.035}

Hinge reinforcement (Rear)

-

-

-

-

0.90 {0.035}

31

C-pllar reinforcement (front) component

C-pillar reinforcement (front)

Outer

X

590 {6016, 85572}

-

-

0.90 {0.035}

Inner

-

-

-

-

0.70 {0.028}

D-pillar reinforcement (upper)

X

590 {6016, 85572}

-

-

2.00 {0.0787}

32

Wheel housing (inner) component

Wheel housing (inner)

-

-

-

X

0.65 {0.0256}

Suspension housing gusset

-

-

X

X

2.60 {0.102}

33

Wheel housing (outer)

-

-

-

X

0.60 {0.024}

34

Cabin side frame (outer) component

Cabin side frame (outer)

-

-

-

X

0.65 {0.0256}

Striker reinforcement

X

780 {7954, 113130}

-

-

1.60 {0.0630}

Nut plate

-

-

-

X

0.65 {0.0256}

35

D-pillar reinforcement

-

-

-

X

0.65 {0.0256}

36

Rear pillar (outer)

-

-

-

X

0.65 {0.0256}

37

Corner plate component

-

-

-

X

0.65 {0.0256}

38

Rear fender (lower) panel

-

-

-

X

0.65 {0.0256}

39

Front door (outer) panel

-

-

-

X

0.70 {0.028}

40

Rear door (outer) panel

-

-

-

X

0.70 {0.028}

41

Liftgate (outer) panel

-

-

-

X

0.70 {0.028}

42

Front header component

Front header

X

780 {7954, 113130}

-

-

1.40 {0.0551}

Front header reinforcement

-

-

-

-

0.70 {0.028}

43

Roof reinforcement No.1 (without sunroof)

-

-

-

-

0.50 {0.0197}

44

Roof reinforcement No.2 component (without sunroof)

Roof reinforcement No.2

X

1,180 {12032, 171145}

-

-

1.20 {0.0472}

Closing plate

-

-

-

-

0.50 {0.0197}

45

Roof reinforcement No.3 (without sunroof)

X

590 {6016, 85572}

-

-

1.00 {0.0394}

46

Roof reinforcement No.4 (without sunroof)

X

590 {6016, 85572}

-

-

1.00 {0.0394}

47

Rear header component

Rear header

Upper

-

-

-

-

0.60 {0.024}

Lower

-

-

-

X

0.70 {0.028}

Hinge reinforcement

-

-

-

-

1.40 {0.0551}

48

Roof panel

-

-

-

-

0.70 {0.028}

49

Fixing plate component (with sunroof)

Rear sunroof set bracket

-

-

X

-

1.40 {0.0551}

Fixing reinforcement

X

590 {6016, 85572}

-

-

2.00 {0.0787}

Fixing plate

-

-

X

-

1.80 {0.0709}

Closing plate

X

980 {9993, 142137}

-

-

0.80 {0.031}

Front sunroof set bracket

-

-

X

-

1.40 {0.0551}

Roof reinforcement No.1

X

780 {7954, 113130}

-

-

1.60 {0.0630}

50

Roof reinforcement component (with sunroof)

Roof side reinforcement

X

980 {9993, 142137}

-

-

0.80 {0.031}

Roof reinforcement No.2

X

590 {6016, 85572}

-

-

1.00 {0.0394}

Roof reinforcement No.3

X

590 {6016, 85572}

-

-

1.00 {0.0394}

51

Dashboard bracket component

Dashboard bracket

X

590 {6016, 85572}

-

-

1.20 {0.0472}

Center console bracket

X

590 {6016, 85572}

-

-

1.00 {0.0394}

Change reinforcement

X

590 {6016, 85572}

-

-

1.00 {0.0394}

52

Tunnel reinforcement (front)

X

590 {6016, 85572}

-

X

1.40 {0.0551}

53

Floor reinforcement component

Floor reinforcement

Front

X

1,500 {15296, 217557}

-

X

2.30 {0.0906}

Rear

-

-

X

X

1.20 {0.0472}

54

Seal bracket

-

-

-

X

0.70 {0.028}

55

Crossmember No.2 component

Crossmember No.2

X

980 {9993, 142137}

-

-

1.80 {0.0709}

Crossmember No.2 reinforcement

X

590 {6016, 85572}

-

-

1.00 {0.0394}

Bracket

-

-

-

-

1.40 {0.0551}

Seat bracket reinforcement

-

-

-

-

2.00 {0.0787}

Seat anchor plate

-

-

-

-

2.00 {0.0787}

56

Tunnel bracket

-

-

-

-

1.00 {0.0394}

57

Crossmember No.2.5 component

Front seat bracket

Center

-

-

X

-

2.30 {0.0906}

Side

-

-

-

-

2.30 {0.0906}

Crossmember No.2.5

X

980 {9993, 142137}

-

-

2.30 {0.0906}

58

Audio amp bracket

-

-

-

-

0.70 {0.028}

59

C-unit bracket

-

-

-

-

0.70 {0.028}

60

Front floor panel

-

-

X

X

0.80 {0.031}

61

Tunnel reinforcement (rear)

-

-

-

-

0.80 {0.031}

62

Front B frame component

Front B frame

X

1,180 {12032, 171145}

-

X

1.60 {0.0630}

Front B frame outer reinforcement No.1

-

-

X

-

1.60 {0.0630}

Front B frame outer reinforcement No.2

-

-

X

-

1.60 {0.0630}

Front B frame reinforcement

-

-

X

X

1.80 {0.0709}

Back plate

-

-

X

X

2.00 {0.0787}

63

Crossmember No.3 (front) component

Crossmember No.3

X

590 {6016, 85572}

-

X

1.60 {0.0630}

Crossmember No.3 (center)

X

1,180 {12032, 171145}

-

-

1.20 {0.0472}

Crossmember No.3 (front)

X

590 {6016, 85572}

-

X

1.80 {0.0709}

Crossmember No.3 reinforcement

-

-

X

X

1.40 {0.0551}

Crossmember No.3 reinforcement (center)

X

1,180 {12032, 171145}

-

-

0.80 {0.031}

Seat bracket

-

-

X

X

0.80 {0.031}

64

Crossmember No.3 (rear) component

Crossmember No.3 (rear) gusset

-

-

-

-

0.60 {0.024}

Crossmember No.3 (rear)

Center

X

780 {7954, 113130}

-

X

1.00 {0.0394}

Side

-

-

X

X

1.80 {0.0709}

65

Crossmember No.4 (upper) component

Crossmember No.4 (upper)

-

-

X

-

0.90 {0.035}

Rear floor (front) reinforcement

-

-

X

-

1.20 {0.0472}

Rear seat hinge reinforcement

X

590 {6016, 85572}

-

-

1.20 {0.0472}

Anchor reinforcement

X

590 {6016, 85572}

-

-

1.60 {0.063}

Brace reinforcement (front)

-

-

-

-

2.30 {0.0906}

Brace reinforcement (rear)

-

-

-

-

0.90 {0.035}

66

Rear floor panel component

Rear floor panel

-

-

-

X

0.70 {0.028}

Converter bracket

-

-

-

-

0.70 {0.028}

67

Crossmember No.4 (lower) component

Crossmember No.4 (lower)

X

780 {7954, 113130}

-

X

1.60 {0.0630}

Crossmember No.4 (lower) reinforcement

X

780 {7954, 113130}

-

X

2.00 {0.0787}

Anchor reinforcement

X

590 {6016, 85572}

-

X

1.80 {0.0709}

68

Crossmember No.5 component

Crossmember No.5

X

590 {6016, 85572}

-

X

1.20 {0.0472}

Crossmember No.5 gusset

-

-

X

-

1.00 {0.0394}

69

Rear side (upper) frame (front)

X

980 {9993, 142137}

-

X

1.60 {0.0630}

70

Floor side panel No.2

-

-

-

X

0.65 {0.0256}

71

Floor side panel No.1 component

Floor side panel No.1

Front

X

780 {7954, 113130}

-

X

0.90 {0.035}

Center

X

590 {6016, 85572}

-

X

0.80 {0.031}

Rear

X

590 {6016, 85572}

-

-

2.00 {0.0787}

72

Rear side frame (front) component

Rear side frame (front)

Upper, front

X

980 {9993, 142137}

-

X

1.60 {0.0630}

Upper, rear

X

780 {7954, 113130}

-

X

2.00 {0.0787}

Lower

X

980 {9993, 142137}

-

X

2.00 {0.0787}

Rear frame reinforcement

Front

X

590 {6016, 85572}

-

X

2.00 {0.0787}

Side

X

980 {9993, 142137}

-

X

2.00 {0.0787}

Upper

X

980 {9993, 142137}

-

X

1.40 {0.0551}

Inner

X

590 {6016, 85572}

-

X

2.30 {0.0906}

Crossmember No.4 junction

-

-

X

X

1.60 {0.0630}

Rear suspension housing

-

-

-

X

3.60 {0.142}

Rear frame gusset

-

-

X

X

2.00 {0.0787}

Suspension housing reinforcement

-

-

-

X

2.00 {0.0787}

Reinforcement

X

780 {7954, 113130}

-

X

1.80 {0.0709}

Rear frame (inner) gusset

-

-

-

X

1.20 {0.0472}

Rear frame gusset

-

-

-

X

1.20 {0.0472}

Link bracket No.1

-

-

X

X

1.80 {0.0709}

Link bracket No.2

-

-

X

X

3.60 {0.142}

Stopper bracket

-

-

-

X

1.20 {0.0472}

73

Rear side frame (rear) component

Rear side frame (rear)

X

780 {7954, 113130}

-

X

1.20 {0.0472}

Rear frame reinforcement (rear) (LH)

X

590 {6016, 85572}

-

X

1.00 {0.0394}

Bumper (lower) bracket

X

980 {9993, 142137}

-

X

2.30 {0.0906}

74

Rear end panel

-

-

-

X

0.60 {0.024}

Light bracket

-

-

-

X

0.65 {0.0256}

Bumper bracket

Upper, center

-

-

-

X

1.00 {0.0394}

Upper, side

-

-

-

X

1.00 {0.0394}

Lower

-

-

-

X

0.70 {0.028}

Antenna reinforcement (LH)

-

-

-

X

1.00 {0.0394}

Rear end member

Center

-

-

X

-

0.60 {0.024}

Side

-

-

-

-

1.20 {0.0472}

Rear end member reinforcement No.1

-

-

-

X

0.65 {0.0256}

Rear end member reinforcement No.2

-

-

-

-

1.00 {0.0394}

No.	Part name			Ultra high-tension steel		High-tension steel	Rust proof steel	Thickness (mm) {in}
No.	Part name			X:Applied -:Not applied	Strength (MPa) {kgf/cm2, psi}	X:Applied -:Not applied	X:Applied -:Not applied	Thickness (mm) {in}
1	Hood (outer panel)			-	-	X	X	0.65 {0.0256}
2	Bumper bracket component	Bumper bracket (upper)		X	590 {6016, 85572}	-	-	2.60 {0.102}
		Bumper bracket (lower)	Inner	-	-	X	X	1.80 {0.0709}
		Bumper bracket (lower)	Outer	-	-	X	X	1.80 {0.0709}
3	Front side frame (inner) component	Front side frame (inner)		X	780 {7954, 113130}	-	X	1.60 {0.0630}
		Front frame (inner) reinforcement		-	-	-	-	1.60 {0.0630}
		Inner frame reinforcement	Front	-	-	-	-	1.00 {0.0394}
			Rear	-	-	-	-	1.00 {0.0394}
			Lower	X	590 {6016, 85572}	-	X	2.30 {0.0906}
4	Front side frame (outer) component	Front side frame (outer)		X	780 {7954, 113130}	-	X	1.60 {0.0630}
4	Front side frame (outer) component	Brake hose bracket		-	-	-	-	3.60 {0.142}
5	Light bracket			-	-	-	X	1.20 {0.0472}
6	Wheel apron component	Front wheel apron		-	-	X	X	1.20 {0.0472}
		Wheel apron (rear)		-	-	-	X	1.20 {0.0472}
		Apron reinforcement		-	-	-	X	1.60 {0.0630}
		Wheel apron reinforcement (rear)		-	-	-	X	1.00 {0.0394}
		Suspension housing reinforcement		X	590 {6016, 85572}	-	X	3.20 {0.126}
		Harness bracket		-	-	-	X	1.20 {0.0472}
		Suspension housing (upper)		-	-	X	X	2.30 {0.0906}
		Suspension housing (lower)		-	-	-	X	0.80 {0.031}
		Wheel apron (rear) reinforcement		X	590 {6016, 85572}	-	X	1.40 {0.0551}
		Apron reinforcement No.3		-	-	-	X	1.00 {0.0394}
7	Headlight bracket			-	-	-	X	0.60 {0.024}
8	Front fender junction			-	-	-	X	0.80 {0.031}
9	Apron reinforcement (upper) component	Shroud upper reinforcement		-	-	X	X	0.90 {0.035}
		Apron reinforcement (upper)		-	-	-	X	1.20 {0.0472}
		Apron upper gusset No.1		-	-	-	X	0.80 {0.031}
		Apron upper gusset No.2		-	-	-	X	0.80 {0.031}
10	Front frame (rear) component	Torque box	Front	-	-	X	X	1.60 {0.0630}
		Torque box	Rear	-	-	X	X	1.40 {0.0551}
		Front frame (rear)		X	980 {9993, 142137}	-	X	2.30 {0.0906}
		Lower arm bracket		-	-	-	X	1.60 {0.0630}
		Front B frame reinforcement		X	590 {6016, 85572}	-	X	1.80 {0.0709}
11	Apron reinforcement (lower) (front)			X	590 {6016, 85572}	-	X	1.00 {0.0394}
12	Apron reinforcement (lower) (rear)			X	780 {7954, 113130}	-	X	1.60 {0.0630}
13	Cowl side reinforcement (rear)			X	780 {7954, 113130}	-	X	1.80 {0.0709}
14	Front fender panel			-	-	-	X	0.70 {0.028}
15	Dash lower panel component	Dash lower panel	Front	-	-	X	X	1.20 {0.0472}
			Rear	-	-	X	X	2.30 {0.0906}
			Upper	-	-	-	X	1.40 {0.0551}
			Side	X	980 {9993, 142137}	-	X	1.20 {0.0472}
		Tunnel junction No.1		-	-	-	X	1.40 {0.0551}
		Dash lower reinforcement	Upper	X	590 {6016, 85572}	-	-	0.80 {0.031}
		Dash lower reinforcement	Lower	-	-	-	-	1.40 {0.0551}
16	Dash and cowl component	Dash upper panel		-	-	-	X	0.65 {0.0256}
		Cowl upper panel		-	-	X	-	1.20 {0.0472}
		End plate		-	-	-	-	0.50 {0.0197}
17	Cowl upper plate			X	590 {6016, 85572}	-	X	2.30 {0.0906}
18	Dash upper reinforcement			X	590 {6016, 85572}	-	X	1.80 {0.0709}
19	Hinge pillar (inner) component	Dashboard bracket No.1		X	590 {6016, 85572}	-	-	2.00 {0.0787}
19	Hinge pillar (inner) component	Hinge pillar (inner)		X	1,180 {12032, 171145}	-	X	2.00 {0.0787}
20	Front pillar (inner)			X	1,310 {13358, 190000}	-	-	1.80 {0.0709}
21	Front pillar upper reinforcement component	Front pillar upper reinforcement	Outer	X	780 {7954, 113130}	-	-	1.20 {0.0472}
		Front pillar upper reinforcement	Inner	-	-	-	-	0.70 {0.028}
		Fixing plate		-	-	-	-	1.40 {0.0551}
22	Nut plate (front)			-	-	-	-	1.20 {0.0472}
23	Roof rail (inner) component	Roof rail (inner)		X	1,310 {13358, 190000}	-	-	1.80 {0.0709}
23	Roof rail (inner) component	Roof corner gusset		X	590 {6016, 85572}	-	-	1.80 {0.0709}
24	Front pillar reinforcement component	Front side reinforcement		X	1,500 {15296, 217557}	-	X	2.00 {0.0787}
		Front pillar reinforcement	Inner, upper	X	1,500 {15296, 217557}	-	X	1.80 {0.0709}
		Front pillar reinforcement	Inner, lower	X	780 {7954, 113130}	-	-	1.00 {0.0394}
25	Side sill (inner) component	Side sill (inner)		X	1,180 {12032, 171145}	-	X	1.60 {0.0630}
		Side sill gusset		X	780 {7954, 113130}	-	-	1.80 {0.0709}
		Side sill reinforcement	Front	-	-	-	X	1.80 {0.0709}
			Upper	-	-	-	-	1.60 {0.0630}
			Inner	X	1,310 {13358, 190000}	-	-	2.00 {0.0787}
			No.1	X	980 {9993, 142137}	-	X	1.00 {0.0394}
			No.2	-	-	-	-	1.00 {0.0394}
			No.3	-	-	-	-	1.00 {0.0394}
			No.4	-	-	-	-	1.00 {0.0394}
26	Hinge reinforcement component	Hinge reinforcement		X	1,180 {12032, 171145}	-	-	1.60 {0.0630}
		Hinge pillar reinforcement		X	1,180 {12032, 171145}	-	-	2.00 {0.0787}
		Hinge upper reinforcement		X	980 {9993, 142137}	-	-	1.40 {0.0551}
		Hinge lower reinforcement		X	980 {9993, 142137}	-	-	1.40 {0.0551}
		Checker reinforcement		X	1,180 {12032, 171145}	-	-	1.40 {0.0551}
		Hinge lower gusset		X	980 {9993, 142137}	-	-	1.40 {0.0551}
		Front fender set bracket		-	-	-	-	1.00 {0.0394}
27	Side sill reinforcement component	Side sill reinforcement		X	1,180 {12032, 171145}	-	X	1.40 {0.0551}
		Side sill reinforcement gusset	No.1	X	980 {9993, 142137}	-	X	1.20 {0.0472}
			No.2	X	980 {9993, 142137}	-	X	1.20 {0.0472}
			No.3	X	980 {9993, 142137}	-	X	1.20 {0.0472}
		Side sill reinforcement (center)		X	980 {9993, 142137}	-	-	1.20 {0.0472}
		Side sill reinforcement (inner)		X	980 {9993, 142137}	-	X	1.20 {0.0472}
		Side sill reinforcement (front)	Inner	X	1,180 {12032, 171145}	-	-	1.40 {0.0551}
		Side sill reinforcement (front)	Outer	-	-	-	X	1.00 {0.0394}
28	Hinge reinforcement component	Roof rail (inner, rear)		X	590 {6016, 85572}	-	-	1.20 {0.0472}
		Nut plate (rear)		-	-	-	-	1.20 {0.0472}
		Roof rack bracket		-	-	-	-	1.20 {0.0472}
		Rear pillar (inner)		-	-	-	X	0.65 {0.0256}
		Rear side panel		-	-	-	-	0.60 {0.024}
		Corner reinforcement		X	590 {6016, 85572}	-	-	1.20 {0.0472}
		Corner (upper) plate		-	-	-	-	1.40 {0.0551}
		Corner junction		-	-	-	X	0.65 {0.0256}
29	Roof rail reinforcement component	Roof rail reinforcement		X	1,500 {15296, 217557}	-	X	1.40 {0.0551}
		Roof rail reinforcement inner		X	1,500 {15296, 217557}	-	X	1.20 {0.0472}
		Roof rail reinforcement		-	-	-	-	0.80 {0.031}
30	C-pillar reinforcement (rear) component	C-pillar reinforcement (Rear)		-	-	-	-	1.00 {0.0394}
		Roof rail reinforcement (Rear)		X	780 {7954, 113130}	-	-	0.90 {0.035}
		Hinge reinforcement (Rear)		-	-	-	-	0.90 {0.035}
31	C-pllar reinforcement (front) component	C-pillar reinforcement (front)	Outer	X	590 {6016, 85572}	-	-	0.90 {0.035}
		C-pillar reinforcement (front)	Inner	-	-	-	-	0.70 {0.028}
		D-pillar reinforcement (upper)		X	590 {6016, 85572}	-	-	2.00 {0.0787}
32	Wheel housing (inner) component	Wheel housing (inner)		-	-	-	X	0.65 {0.0256}
32	Wheel housing (inner) component	Suspension housing gusset		-	-	X	X	2.60 {0.102}
33	Wheel housing (outer)			-	-	-	X	0.60 {0.024}
34	Cabin side frame (outer) component	Cabin side frame (outer)		-	-	-	X	0.65 {0.0256}
		Striker reinforcement		X	780 {7954, 113130}	-	-	1.60 {0.0630}
		Nut plate		-	-	-	X	0.65 {0.0256}
35	D-pillar reinforcement			-	-	-	X	0.65 {0.0256}
36	Rear pillar (outer)			-	-	-	X	0.65 {0.0256}
37	Corner plate component			-	-	-	X	0.65 {0.0256}
38	Rear fender (lower) panel			-	-	-	X	0.65 {0.0256}
39	Front door (outer) panel			-	-	-	X	0.70 {0.028}
40	Rear door (outer) panel			-	-	-	X	0.70 {0.028}
41	Liftgate (outer) panel			-	-	-	X	0.70 {0.028}
42	Front header component	Front header		X	780 {7954, 113130}	-	-	1.40 {0.0551}
42	Front header component	Front header reinforcement		-	-	-	-	0.70 {0.028}
43	Roof reinforcement No.1 (without sunroof)			-	-	-	-	0.50 {0.0197}
44	Roof reinforcement No.2 component (without sunroof)	Roof reinforcement No.2		X	1,180 {12032, 171145}	-	-	1.20 {0.0472}
44	Roof reinforcement No.2 component (without sunroof)	Closing plate		-	-	-	-	0.50 {0.0197}
45	Roof reinforcement No.3 (without sunroof)			X	590 {6016, 85572}	-	-	1.00 {0.0394}
46	Roof reinforcement No.4 (without sunroof)			X	590 {6016, 85572}	-	-	1.00 {0.0394}
47	Rear header component	Rear header	Upper	-	-	-	-	0.60 {0.024}
		Rear header	Lower	-	-	-	X	0.70 {0.028}
		Hinge reinforcement		-	-	-	-	1.40 {0.0551}
48	Roof panel			-	-	-	-	0.70 {0.028}
49	Fixing plate component (with sunroof)	Rear sunroof set bracket		-	-	X	-	1.40 {0.0551}
		Fixing reinforcement		X	590 {6016, 85572}	-	-	2.00 {0.0787}
		Fixing plate		-	-	X	-	1.80 {0.0709}
		Closing plate		X	980 {9993, 142137}	-	-	0.80 {0.031}
		Front sunroof set bracket		-	-	X	-	1.40 {0.0551}
		Roof reinforcement No.1		X	780 {7954, 113130}	-	-	1.60 {0.0630}
50	Roof reinforcement component (with sunroof)	Roof side reinforcement		X	980 {9993, 142137}	-	-	0.80 {0.031}
		Roof reinforcement No.2		X	590 {6016, 85572}	-	-	1.00 {0.0394}
		Roof reinforcement No.3		X	590 {6016, 85572}	-	-	1.00 {0.0394}
51	Dashboard bracket component	Dashboard bracket		X	590 {6016, 85572}	-	-	1.20 {0.0472}
		Center console bracket		X	590 {6016, 85572}	-	-	1.00 {0.0394}
		Change reinforcement		X	590 {6016, 85572}	-	-	1.00 {0.0394}
52	Tunnel reinforcement (front)			X	590 {6016, 85572}	-	X	1.40 {0.0551}
53	Floor reinforcement component	Floor reinforcement	Front	X	1,500 {15296, 217557}	-	X	2.30 {0.0906}
53	Floor reinforcement component	Floor reinforcement	Rear	-	-	X	X	1.20 {0.0472}
54	Seal bracket			-	-	-	X	0.70 {0.028}
55	Crossmember No.2 component	Crossmember No.2		X	980 {9993, 142137}	-	-	1.80 {0.0709}
		Crossmember No.2 reinforcement		X	590 {6016, 85572}	-	-	1.00 {0.0394}
		Bracket		-	-	-	-	1.40 {0.0551}
		Seat bracket reinforcement		-	-	-	-	2.00 {0.0787}
		Seat anchor plate		-	-	-	-	2.00 {0.0787}
56	Tunnel bracket			-	-	-	-	1.00 {0.0394}
57	Crossmember No.2.5 component	Front seat bracket	Center	-	-	X	-	2.30 {0.0906}
		Front seat bracket	Side	-	-	-	-	2.30 {0.0906}
		Crossmember No.2.5		X	980 {9993, 142137}	-	-	2.30 {0.0906}
58	Audio amp bracket			-	-	-	-	0.70 {0.028}
59	C-unit bracket			-	-	-	-	0.70 {0.028}
60	Front floor panel			-	-	X	X	0.80 {0.031}
61	Tunnel reinforcement (rear)			-	-	-	-	0.80 {0.031}
62	Front B frame component	Front B frame		X	1,180 {12032, 171145}	-	X	1.60 {0.0630}
		Front B frame outer reinforcement No.1		-	-	X	-	1.60 {0.0630}
		Front B frame outer reinforcement No.2		-	-	X	-	1.60 {0.0630}
		Front B frame reinforcement		-	-	X	X	1.80 {0.0709}
		Back plate		-	-	X	X	2.00 {0.0787}
63	Crossmember No.3 (front) component	Crossmember No.3		X	590 {6016, 85572}	-	X	1.60 {0.0630}
		Crossmember No.3 (center)		X	1,180 {12032, 171145}	-	-	1.20 {0.0472}
		Crossmember No.3 (front)		X	590 {6016, 85572}	-	X	1.80 {0.0709}
		Crossmember No.3 reinforcement		-	-	X	X	1.40 {0.0551}
		Crossmember No.3 reinforcement (center)		X	1,180 {12032, 171145}	-	-	0.80 {0.031}
		Seat bracket		-	-	X	X	0.80 {0.031}
64	Crossmember No.3 (rear) component	Crossmember No.3 (rear) gusset		-	-	-	-	0.60 {0.024}
		Crossmember No.3 (rear)	Center	X	780 {7954, 113130}	-	X	1.00 {0.0394}
		Crossmember No.3 (rear)	Side	-	-	X	X	1.80 {0.0709}
65	Crossmember No.4 (upper) component	Crossmember No.4 (upper)		-	-	X	-	0.90 {0.035}
		Rear floor (front) reinforcement		-	-	X	-	1.20 {0.0472}
		Rear seat hinge reinforcement		X	590 {6016, 85572}	-	-	1.20 {0.0472}
		Anchor reinforcement		X	590 {6016, 85572}	-	-	1.60 {0.063}
		Brace reinforcement (front)		-	-	-	-	2.30 {0.0906}
		Brace reinforcement (rear)		-	-	-	-	0.90 {0.035}
66	Rear floor panel component	Rear floor panel		-	-	-	X	0.70 {0.028}
66	Rear floor panel component	Converter bracket		-	-	-	-	0.70 {0.028}
67	Crossmember No.4 (lower) component	Crossmember No.4 (lower)		X	780 {7954, 113130}	-	X	1.60 {0.0630}
		Crossmember No.4 (lower) reinforcement		X	780 {7954, 113130}	-	X	2.00 {0.0787}
		Anchor reinforcement		X	590 {6016, 85572}	-	X	1.80 {0.0709}
68	Crossmember No.5 component	Crossmember No.5		X	590 {6016, 85572}	-	X	1.20 {0.0472}
68	Crossmember No.5 component	Crossmember No.5 gusset		-	-	X	-	1.00 {0.0394}
69	Rear side (upper) frame (front)			X	980 {9993, 142137}	-	X	1.60 {0.0630}
70	Floor side panel No.2			-	-	-	X	0.65 {0.0256}
71	Floor side panel No.1 component	Floor side panel No.1	Front	X	780 {7954, 113130}	-	X	0.90 {0.035}
			Center	X	590 {6016, 85572}	-	X	0.80 {0.031}
			Rear	X	590 {6016, 85572}	-	-	2.00 {0.0787}
72	Rear side frame (front) component	Rear side frame (front)	Upper, front	X	980 {9993, 142137}	-	X	1.60 {0.0630}
			Upper, rear	X	780 {7954, 113130}	-	X	2.00 {0.0787}
			Lower	X	980 {9993, 142137}	-	X	2.00 {0.0787}
		Rear frame reinforcement	Front	X	590 {6016, 85572}	-	X	2.00 {0.0787}
			Side	X	980 {9993, 142137}	-	X	2.00 {0.0787}
			Upper	X	980 {9993, 142137}	-	X	1.40 {0.0551}
			Inner	X	590 {6016, 85572}	-	X	2.30 {0.0906}
		Crossmember No.4 junction		-	-	X	X	1.60 {0.0630}
		Rear suspension housing		-	-	-	X	3.60 {0.142}
		Rear frame gusset		-	-	X	X	2.00 {0.0787}
		Suspension housing reinforcement		-	-	-	X	2.00 {0.0787}
		Reinforcement		X	780 {7954, 113130}	-	X	1.80 {0.0709}
		Rear frame (inner) gusset		-	-	-	X	1.20 {0.0472}
		Rear frame gusset		-	-	-	X	1.20 {0.0472}
		Link bracket No.1		-	-	X	X	1.80 {0.0709}
		Link bracket No.2		-	-	X	X	3.60 {0.142}
		Stopper bracket		-	-	-	X	1.20 {0.0472}
73	Rear side frame (rear) component	Rear side frame (rear)		X	780 {7954, 113130}	-	X	1.20 {0.0472}
		Rear frame reinforcement (rear) (LH)		X	590 {6016, 85572}	-	X	1.00 {0.0394}
		Bumper (lower) bracket		X	980 {9993, 142137}	-	X	2.30 {0.0906}
74	Rear end panel			-	-	-	X	0.60 {0.024}
	Light bracket			-	-	-	X	0.65 {0.0256}
	Bumper bracket	Upper, center		-	-	-	X	1.00 {0.0394}
		Upper, side		-	-	-	X	1.00 {0.0394}
		Lower		-	-	-	X	0.70 {0.028}
	Antenna reinforcement (LH)			-	-	-	X	1.00 {0.0394}
	Rear end member	Center		-	-	X	-	0.60 {0.024}
	Rear end member	Side		-	-	-	-	1.20 {0.0472}
	Rear end member reinforcement No.1			-	-	-	X	0.65 {0.0256}
	Rear end member reinforcement No.2			-	-	-	-	1.00 {0.0394}
