FRONT SIDE FRAME REMOVAL [PANEL REPLACEMENT]

id098008605900

Symbol Mark

ac5uub00000086

Removal Procedure

1.  Refer to [DAMAGED VEHICLE HANDLING] and [HIGH VOLTAGE SERVICE CAUTIONS] in the general information, implement the necessary measures, and then start the procedure.(See DAMAGED VEHICLE HANDLING [(E)].) (See HIGH VOLTAGE SERVICE CAUTIONS.)

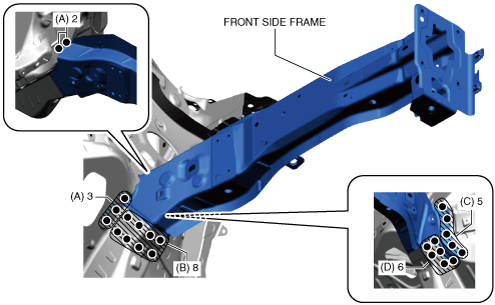

2.  Drill the spot welds in the 5 locations in area A shown in the figure from the engine compartment.

3.  Drill the spot welds in the 8 locations in area B shown in the figure from the engine compartment.

Note

•  When drilling the spot welds in the 8 locations in area B shown in the figure, do not drill through-holes in consideration of the workability when installing.

4.  Drill the spot welds in the 5 locations in area C shown in the figure from the front wheel housing.

5.  Drill the spot welds in the 6 locations in area D shown in the figure from the front wheel housing.

Note

•  When drilling the spot welds in the 6 locations in area D shown in the figure, do not drill through-holes in consideration of the workability when installing.

a30zzb00000014

6.  Remove the front side frame from the front frame (rear).
