CORNER JUNCTION REMOVAL [PANEL REPLACEMENT]

id098008611400

Symbol Mark

am3zzb00000385

Removal Procedure

1.  Refer to [DAMAGED VEHICLE HANDLING] and [HIGH VOLTAGE SERVICE CAUTIONS] in the general information, implement the necessary measures, and then start the procedure.(See DAMAGED VEHICLE HANDLING [(E)].) (See HIGH VOLTAGE SERVICE CAUTIONS.)

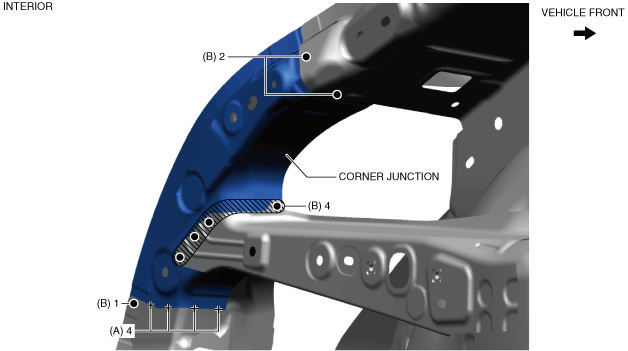

2.  Using a belt sander, grind the arc welds in the 4 locations in area A shown in the figure from the interior.

3.  Drill the spot welds in the 7 locations in area B shown in the figure from the interior.

a30zzb00000063

4.  Remove the corner junction.
