CORNER JUNCTION INSTALLATION [PANEL REPLACEMENT]

id098008611500

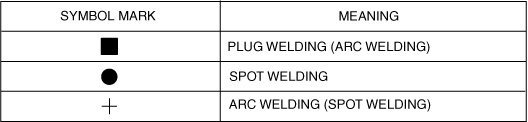

Symbol Mark

am3zzb00000586

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

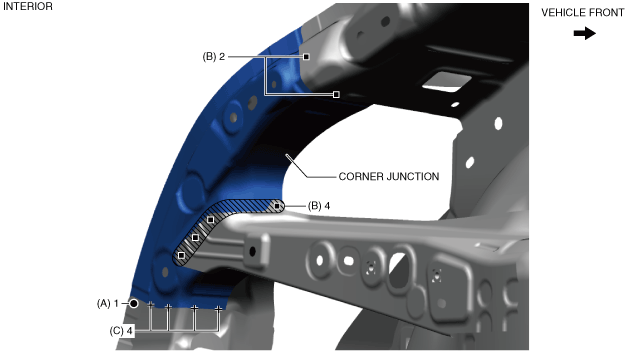

4.  Spot weld in the 1 location in area A shown in the figure from the interior.

5.  Plug welds in the 6 locations in area B shown in the figure from the interior.

6.  Arc spot welds in the 4 locations in area C shown in the figure from the interior and install the corner junction.

a30zzb00000182
