FLOOR SIDE PANEL REMOVAL [PANEL REPLACEMENT]

id098008618700

Symbol Mark

ac5uub00000086

Removal Procedure

1.  Refer to [DAMAGED VEHICLE HANDLING] and [HIGH VOLTAGE SERVICE CAUTIONS] in the general information, implement the necessary measures, and then start the procedure.(See DAMAGED VEHICLE HANDLING [(E)].) (See HIGH VOLTAGE SERVICE CAUTIONS.)

2.  Drill the spot welds in the 11 locations in area A shown in the figure.

a30zzb00000075

3.  Remove the rear bumper bracket.

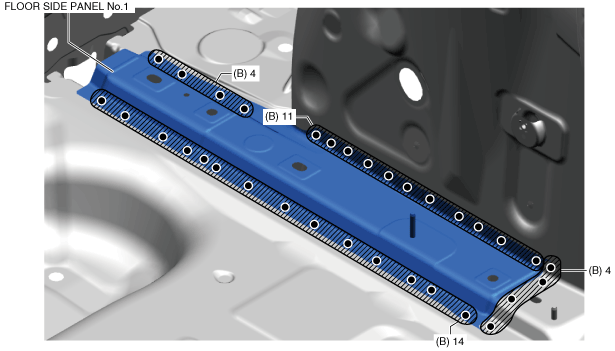

4.  Drill the spot welds in the 33 locations in area B shown in the figure.

a30zzb00000076

5.  Remove the floor side panel No.1.

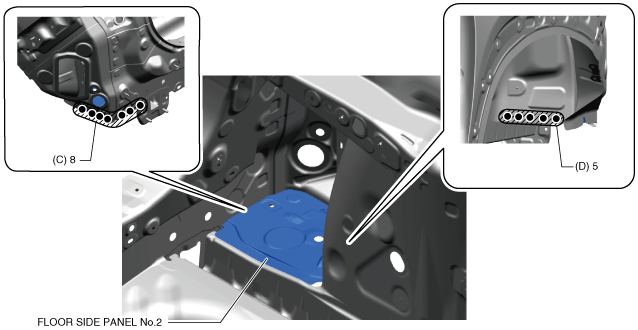

6.  Drill the spot welds in the 8 locations in area C shown in the figure.

7.  Drill the spot welds in the 5 locations in area D shown in the figure from the rear wheel housing.

a30zzb00000077

8.  Remove the floor side panel No.2.
