FLOOR SIDE PANEL INSTALLATION [PANEL REPLACEMENT]

id098008618800

Symbol Mark

ac5uub00000096

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

4.  Plug welds in the 8 locations in area A shown in the figure from the rear wheel housing.

5.  Plug welds in the 5 locations in area B shown in the figure and install the floor side panel No.2.

a30zzb00000194

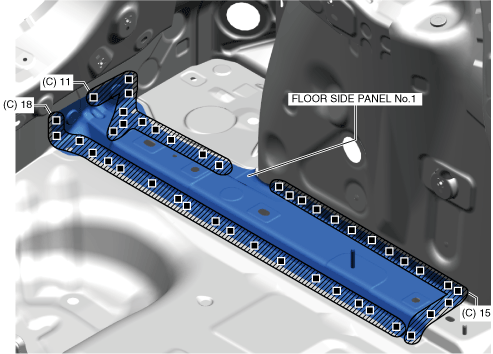

6.  Plug welds in the 44 locations in area C shown in the figure and install the floor side panel No.1.

a30zzb00000195
