COWL SIDE REINFORCEMENT REMOVAL [PANEL REPLACEMENT]

id098008741700

Symbol Mark

ac5uub00000086

Removal Procedure

1.  Refer to [DAMAGED VEHICLE HANDLING] and [HIGH VOLTAGE SERVICE CAUTIONS] in the general information, implement the necessary measures, and then start the procedure.(See DAMAGED VEHICLE HANDLING [(E)].) (See HIGH VOLTAGE SERVICE CAUTIONS.)

2.  Remove the apron reinforcement (lower) (front). (See APRON REINFORCEMENT (LOWER) (FRONT) REMOVAL [PANEL REPLACEMENT].)

3.  Remove the apron reinforcement (lower) (rear). (See APRON REINFORCEMENT (LOWER) (REAR) REMOVAL [PANEL REPLACEMENT].)

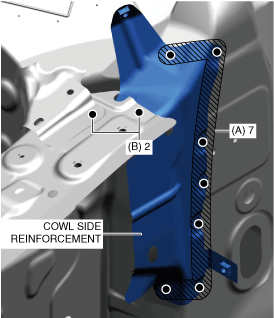

4.  Drill the spot welds in the 7 locations in area A shown in the figure.

Note

•  When drilling the spot welds in the 7 locations in area A shown in the figure, do not drill through-holes in consideration of the workability when installing.

5.  Drill the spot welds in the 2 locations in area B shown in the figure.

a30zzb00000008

6.  Remove the cowl side reinforcement.
