REAR FLOOR PAN REMOVAL [PANEL REPLACEMENT]


id098008742700


Symbol Marks

a30zzb00000025

Removal Procedure

1.  Refer to [DAMAGED VEHICLE HANDLING] and [HIGH VOLTAGE SERVICE CAUTIONS] in the general information, implement the necessary measures, and then start the procedure.(See DAMAGED VEHICLE HANDLING [(E)].) (See HIGH VOLTAGE SERVICE CAUTIONS.)

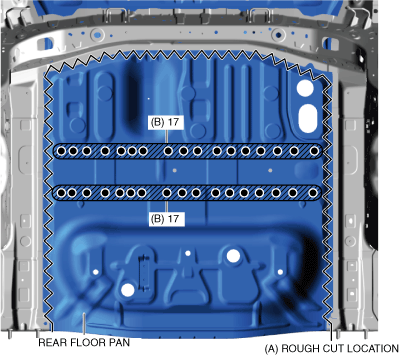

2.  Rough cut the location in area A shown in the figure.

Caution
•  Be careful not to damage crossmember No. 5 when rough cutting part A shown in the figure. Otherwise, the vehicle strength may become diminished.

3.  Drill the spot welds in the 34 locations in area B shown in the figure.

Note
•  When drilling the spot welds in the 34 locations in area B shown in the figure, do not drill through-holes in consideration of the workability when installing.
a30zzb00000078

4.  Remove the rear floor pan.
