REAR END PANEL REMOVAL [PANEL REPLACEMENT]

id098008744500

Symbol Mark

ac8wzb00000225

Removal Procedure

1.  Refer to [DAMAGED VEHICLE HANDLING] and [HIGH VOLTAGE SERVICE CAUTIONS] in the general information, implement the necessary measures, and then start the procedure. (See DAMAGED VEHICLE HANDLING.) (See HIGH VOLTAGE SERVICE CAUTIONS.)

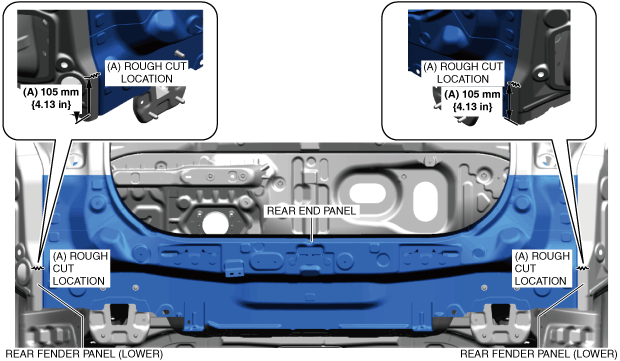

2.  Rough cut the 2 locations in area A shown in the figure.

a30zzb00000064

3.  Drill the spot welds in the 6 locations in area B shown in the figure.

a30zzb00000065

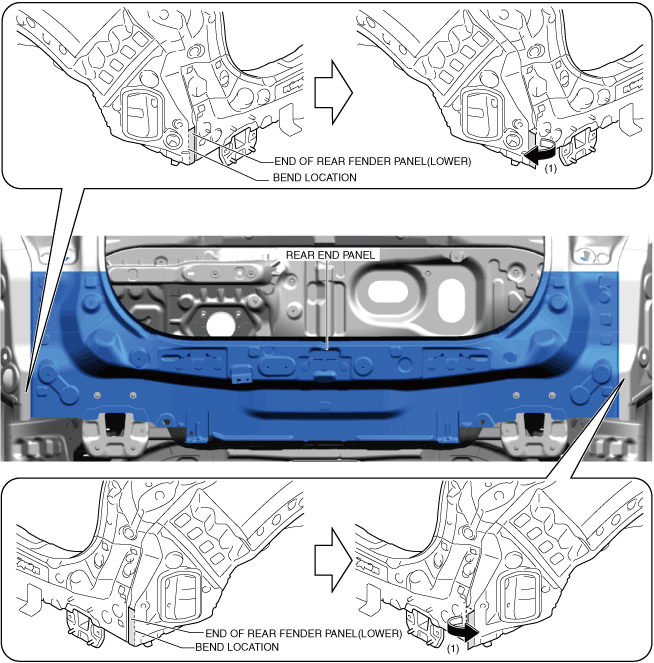

4.  Bend the edge of the rear fender panel (lower) in the direction of arrow (1) shown in the figure.

a30zzb00000066

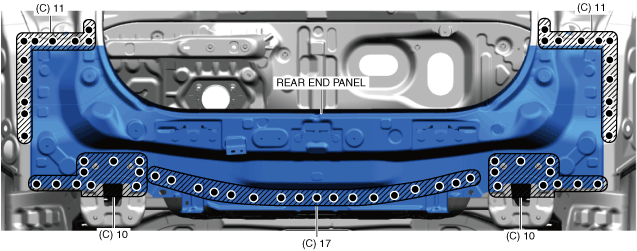

5.  Drill the spot welds in the 59 locations in area C shown in the figure.

a30zzb00000067

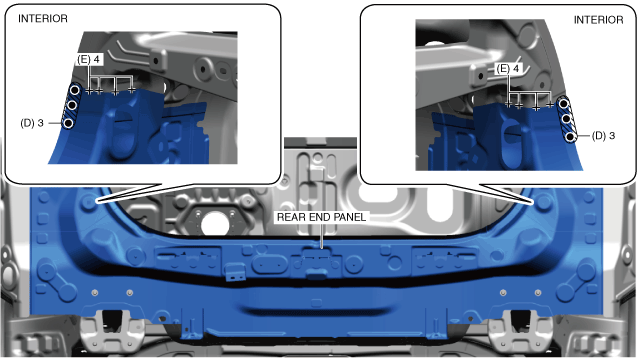

6.  Drill the spot welds in the 6 locations in area D shown in the figure from the interior.

7.  Using the belt sander, grind the arc welds in the 8 locations in area E shown in the figure from the interior.

a30zzb00000068

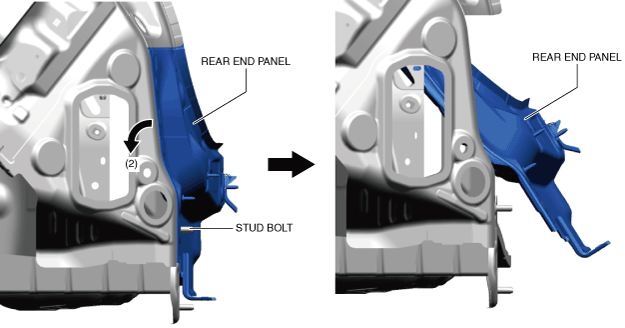

8.  While pulling the lower end of the rear end panel in the direction of arrow (2), pull the panel off the stud bolts.

a30zzb00000069

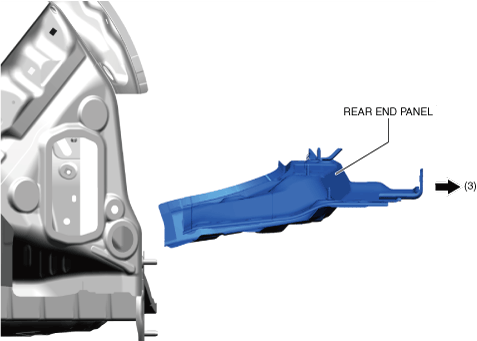

9.  Pull the rear end panel out in the direction of arrow (3) and remove the rear end panel.
