REAR END PANEL INSTALLATION [PANEL REPLACEMENT]

id098008744600

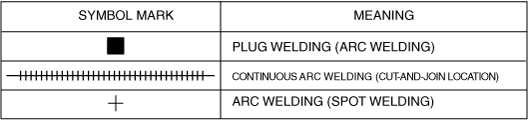

Symbol Mark

am3zzb00000545

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

4.  Insert the rear end panel in the direction of arrow (1) to show in the figure.

a30zzb00000183

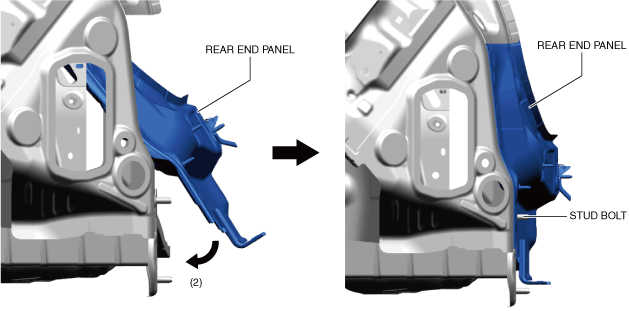

5.  Push the core end of the rear end panel and install it in the direction of arrow (2) to show in the figure in spite of being insertion in stud bolts.

a30zzb00000184

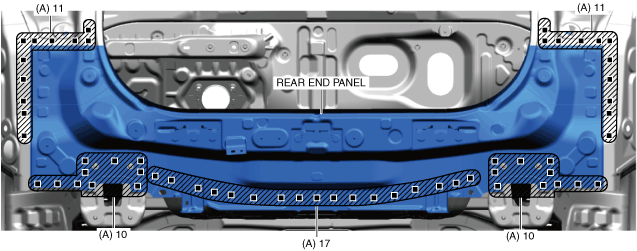

6.  Plug welds in the 59 locations in area A shown in the figure.

a30zzb00000185

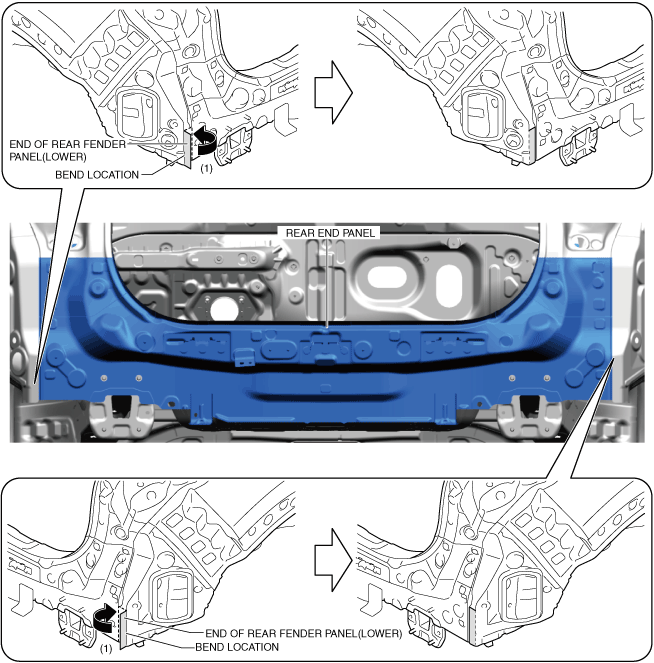

7.  After repairing the ends of the rear fender panel (lower) in the directon of arrow (1) shown in the figure.

Caution

•  If there is a gap between the rear end panel and the end of the repaired rear fender panel (lower), abnormal noise may occur due to vibration and welding defects caused by burn-through during plug welding. When performing plug welding after repairing the end of the rear fender panel (lower), secure them using a vise to prevent a gap from forming between the rear end panel.

a30zzb00000186

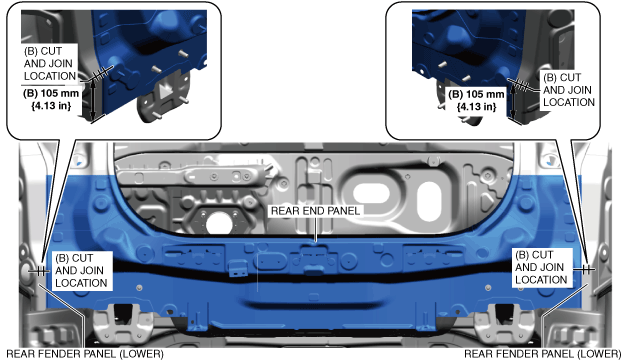

8.  Cut and join the 2 locations in area B shown in the figure.

a30zzb00000187

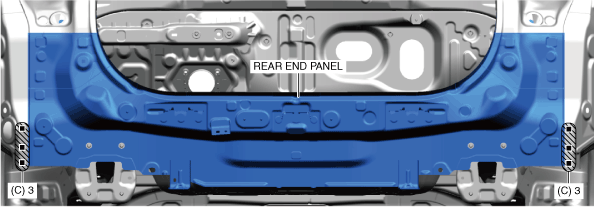

9.  Plug welds in the 6 locations in area C shown in the figure.

a30zzb00000188

10.  Plug welds in the 6 locations in area D shown in the figure from the interior.

11.  Arc spot welds in the 6 locations in area E shown in the figure from the interior and install the rear end panel.

a30zzb00000189
