WHEEL APRON COMPONENT REMOVAL [PANEL REPLACEMENT]

id098008746000

Symbol Mark

a30zzb00000010

Removal Procedure

1.  Refer to [DAMAGED VEHICLE HANDLING] and [HIGH VOLTAGE SERVICE CAUTIONS] in the general information, implement the necessary measures, and then start the procedure.(See DAMAGED VEHICLE HANDLING [(E)].) (See HIGH VOLTAGE SERVICE CAUTIONS.)

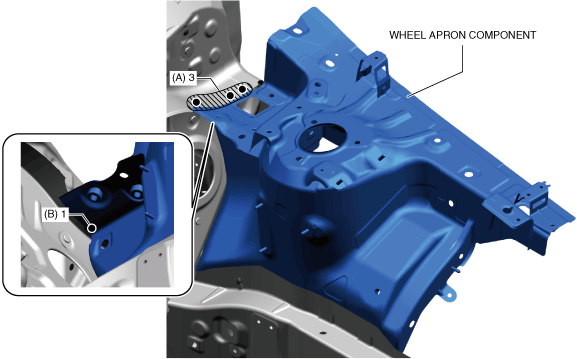

2.  Drill the spot welds in the 3 locations in area A shown in the figure from the engine compartment.

3.  Using a belt sander, grind the spot weld in the 1 location in area B shown in the figure from the engine compartment.

a30zzb00000011

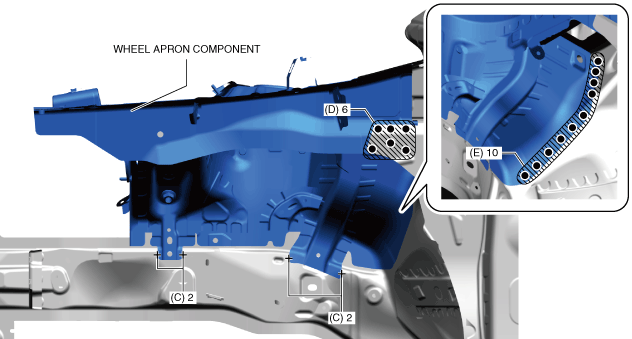

4.  Using a belt sander, grind the arc spot welds in the 4 locations in area C shown in the figure from the front wheel housing.

5.  Drill the spot welds in the 6 locations in area D shown in the figure from the front wheel housing.

6.  Drill the spot welds in the 10 locations in area E shown in the figure from the front wheel housing.

Note

•  When drilling the spot welds in the 10 locations in area E shown in the figure, do not drill through-holes in consideration of the workability when installing.

a30zzb00000012

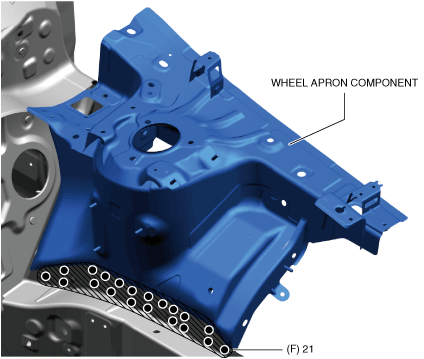

7.  Drill the spot welds in the 21 locations in area F shown in the figure from the engine compartment.

a30zzb00000013

8.  Remove the wheel apron component.
