REAR PILLAR (OUTER) REMOVAL [PANEL REPLACEMENT]

id098008747200

Symbol Mark

a30zzb00000025

Removal Procedure

1.  Refer to [DAMAGED VEHICLE HANDLING] and [HIGH VOLTAGE SERVICE CAUTIONS] in the general information, implement the necessary measures, and then start the procedure.(See DAMAGED VEHICLE HANDLING [(E)].) (See HIGH VOLTAGE SERVICE CAUTIONS.)

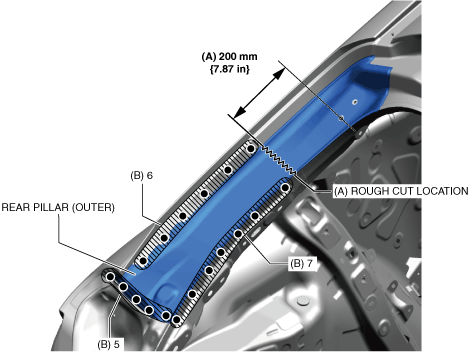

2.  Rough cut the location in area A shown in the figure.

3.  Drill the spot welds in the 18 locations in area B shown in the figure.

a30zzb00000071

4.  Remove the rear pillar (outer).
