FRONT FRAME (REAR) COMPONENT REMOVAL [PANEL REPLACEMENT]

id098008752600

Symbol Mark

ac5uub00000086

Removal Procedure

1.  Refer to [DAMAGED VEHICLE HANDLING] and [HIGH VOLTAGE SERVICE CAUTIONS] in the general information, implement the necessary measures, and then start the procedure.(See DAMAGED VEHICLE HANDLING [(E)].) (See HIGH VOLTAGE SERVICE CAUTIONS.)

2.  Drill the spot welds in the 65 locations in area A shown in the figure from the interior.

a30zzb00000018

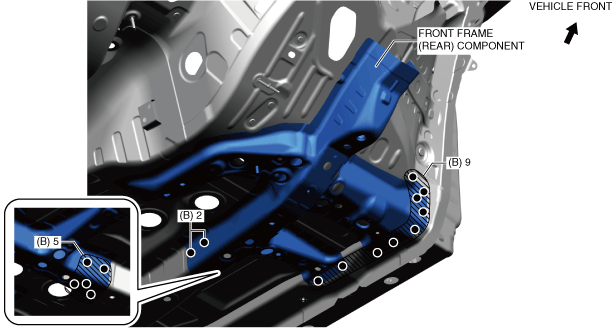

3.  Drill the spot welds in the 16 locations in area B shown in the figure.

Note

•  When drilling the spot welds in the 16 locations in area B shown in the figure, do not drill through-holes in consideration of the workability when installing.

a30zzb00000019

4.  Remove the front frame (rear) component.
