APRON REINFORCEMENT (UPPER) (PARTIAL CUTTING) REMOVAL [PANEL REPLACEMENT]

id098008801000

Symbol Mark

a30zzb00000006

Removal Procedure

1.  Refer to [DAMAGED VEHICLE HANDLING] and [HIGH VOLTAGE SERVICE CAUTIONS] in the general information, implement the necessary measures, and then start the procedure.(See DAMAGED VEHICLE HANDLING [(E)].) (See HIGH VOLTAGE SERVICE CAUTIONS.)

2.  Remove the headlight bracket. (See HEADLIGHT BRACKET REMOVAL [PANEL REPLACEMENT].)

3.  Remove the apron reinforcement (lower) (front). (See APRON REINFORCEMENT (LOWER) (FRONT) REMOVAL [PANEL REPLACEMENT].)

4.  Remove the apron reinforcement (lower) (rear). (See APRON REINFORCEMENT (LOWER) (REAR) REMOVAL [PANEL REPLACEMENT].)

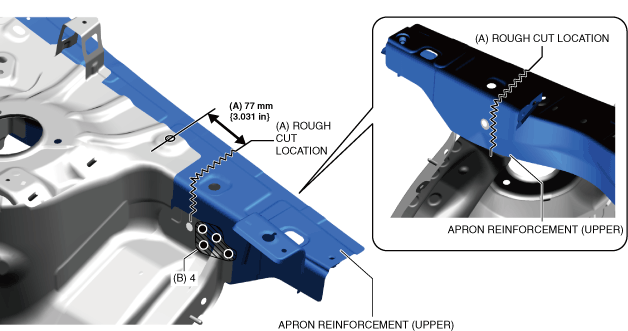

5.  Rough cut the location in area A shown in the figure.

6.  Drill the spot welds in the 4 locations in area B shown in the figure.

a30zzb00000007

7.  Remove the apron reinforcement (upper).
