REAR SIDE PANEL REMOVAL [PANEL REPLACEMENT]

id098008829100

Symbol Mark

ac5uub00000086

Removal Procedure

1.  Refer to [DAMAGED VEHICLE HANDLING] and [HIGH VOLTAGE SERVICE CAUTIONS] in the general information, implement the necessary measures, and then start the procedure.(See DAMAGED VEHICLE HANDLING [(E)].) (See HIGH VOLTAGE SERVICE CAUTIONS.)

2.  Drill the spot welds in the 12 locations (LH), 14 locations (RH) shown in the figure.

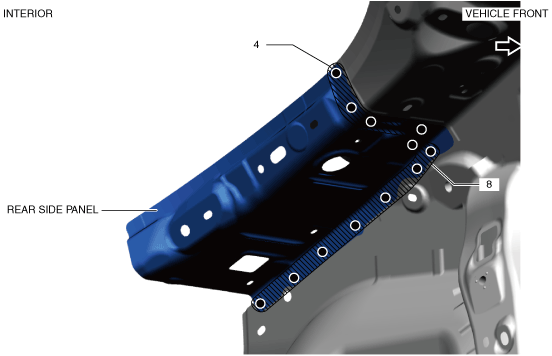

LH

a30zzb00000073

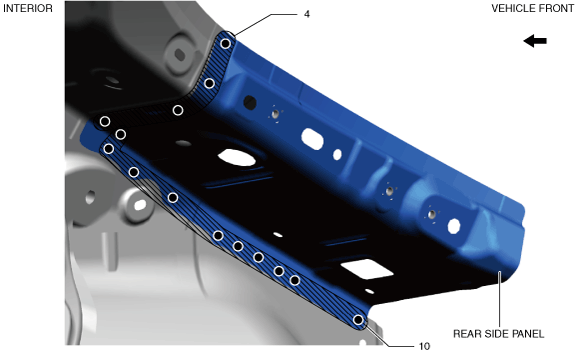

RH

a30zzb00000074

3.  Remove the rear side panel.
