REAR SIDE PANEL INSTALLATION [PANEL REPLACEMENT]

id098008829200

Symbol Mark

ac5uub00000096

Installation Procedure

1. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2. Drill holes for the plug welding before installing the new parts.

3. After temporarily installing new parts, make sure the related parts fit properly.

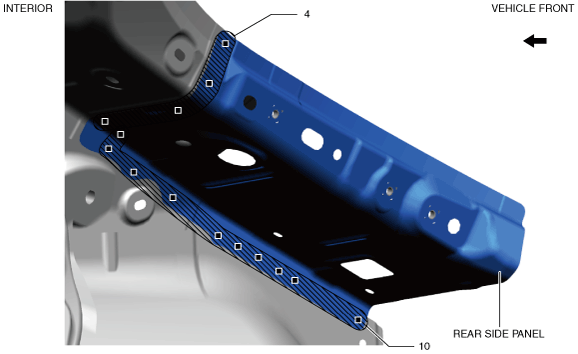

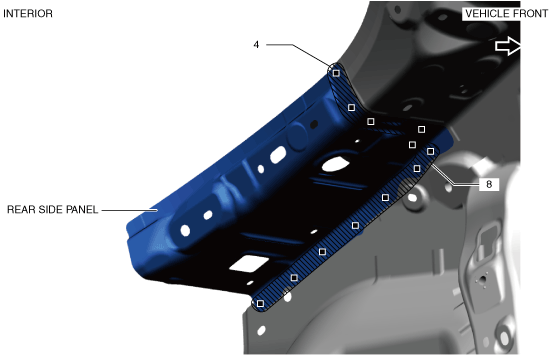

4. Plug welds in the 12 locations(LH), 14 locations(RH) shown in the figure and install the rear side panel.

a30zzb00000192

a30zzb00000193
