D-PILLAR REINFORCEMENT REMOVAL [PANEL REPLACEMENT]

id098008969500

Symbol Mark

ac5uub00000086

Removal Procedure

1.  Refer to [DAMAGED VEHICLE HANDLING] and [HIGH VOLTAGE SERVICE CAUTIONS] in the general information, implement the necessary measures, and then start the procedure.(See DAMAGED VEHICLE HANDLING [(E)].) (See HIGH VOLTAGE SERVICE CAUTIONS.)

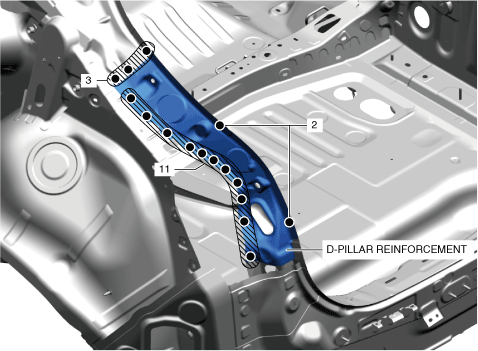

2.  Drill the spot welds in the 16 locations shown in the figure.

a30zzb00000072

3.  Remove the D-pillar reinforcement.
