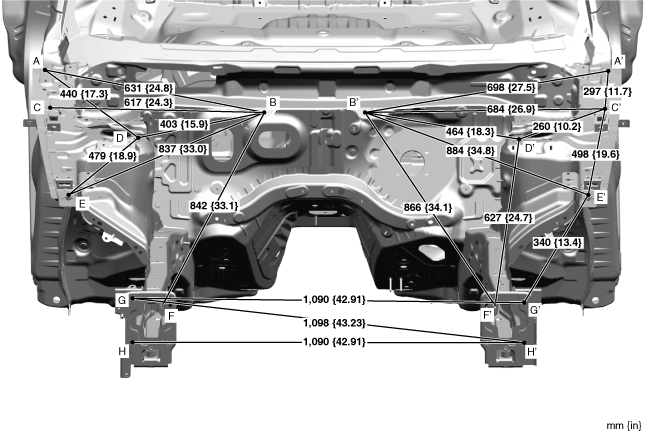

FRONT BODY DIMENSIONS (1) [DIMENSIONS]
id098010990100
a30zzb00000107
|
a30zzb00000108
|
|

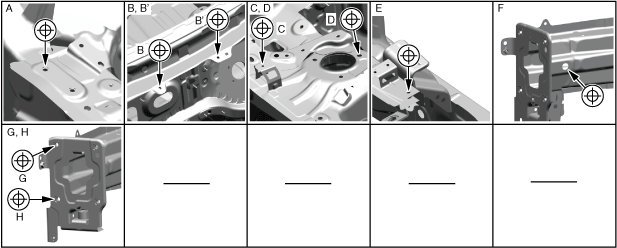

Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Hood hinge installation hole
|
φ10 {0.39}
|
|
B
|
Cowl panel installation hole
|
φ12 {0.47}
|
|
C
|
Front fender panel installation hole
|
φ7 {0.28}
|
|
D
|
Front shock absorber installation hole
|
φ12.3 {0.484}
|
|
E
|
Shroud upper reinforcement installation hole
|
φ10 {0.39}
|
|
F
|
Front side frame datum hole
|
φ16 {0.63}
|
|
G
|
Front bumper reinforcement installation nut
|
M10
|
|
H
|
Front bumper reinforcement installation nut
|
M10
|
