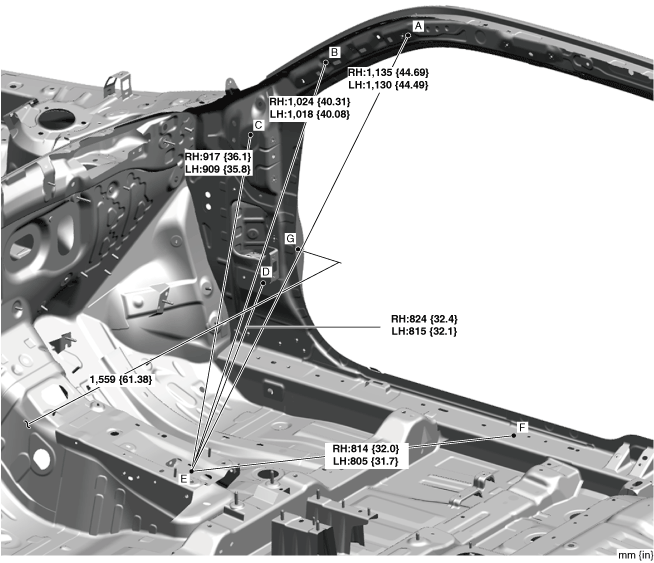

ROOM DIMENSIONS (1) [DIMENSIONS]
id098010990500
a30zzb00000113
|
a30zzb00000114
|
|

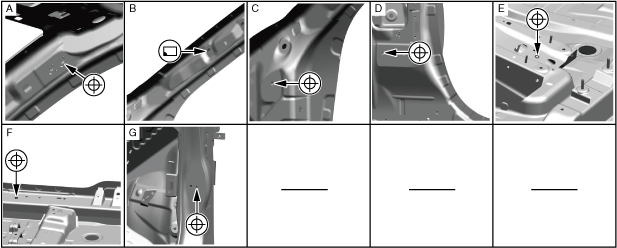

Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Curtain air bag module installation nut
|
M6
|
|
B
|
Washer hose clip installation square hole
|
9 X 10
{0.35 X 0.39}
|
|
C
|
Dash gusset component installation nut
|
M8
|
|
D
|
Dash gusset component installation nut
|
M8
|
|
E
|
Dashboard panel bracket datum hole
|
φ10 {0.39}
|
|
F
|
Side sill (inner) panel datum hole
|
φ14 {0.55}
|
|
G
|
Front door checker installation hole
|
φ4 {0.2}
|
