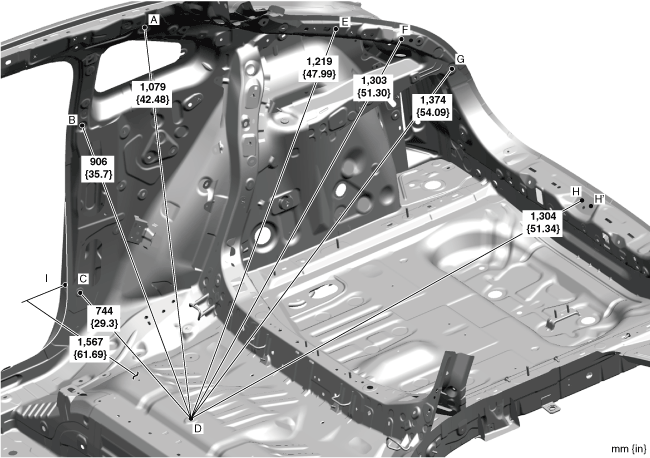

ROOM DIMENSIONS (2) [DIMENSIONS]
id098010990600
a30zzb00000115
|
a30zzb00000116
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Shock absorbing pad installation hole
|
φ8.6 {0.34}
|
|
B
|
Rear pillar trim installation hole
|
φ8.6 {0.34}
|
|
C
|
Tire house trim installation hole
|
φ8.6 {0.34}
|
|
D
|
Rear floor pan datum hole
|
φ16 {0.63}
|
|
E
|
Rear pillar trim installation hole
|
φ8.6 {0.34}
|
|
F
|
Trunk side upper trim installation hole
|
φ6 {0.236}
|
|
G
|
Trunk side trim installation hole
|
φ8.6 {0.34}
|
|
H
|
Liftgate lock striker installation nut
|
M8
|
|
I
|
Rear door striker installation hole
|
φ4 {0.28}
|
