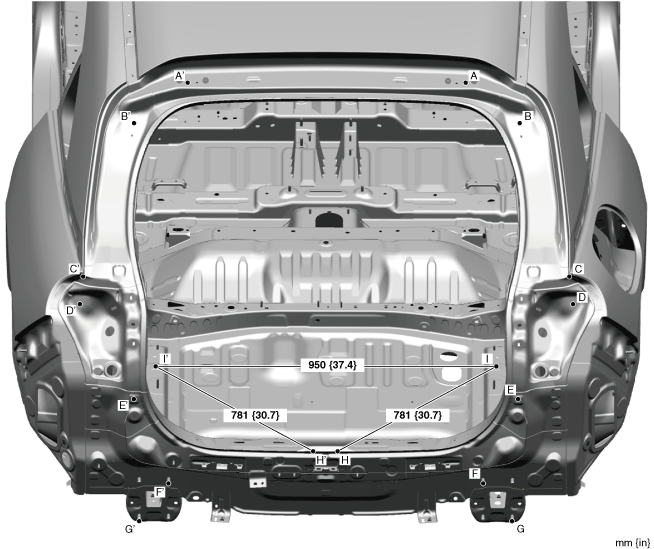

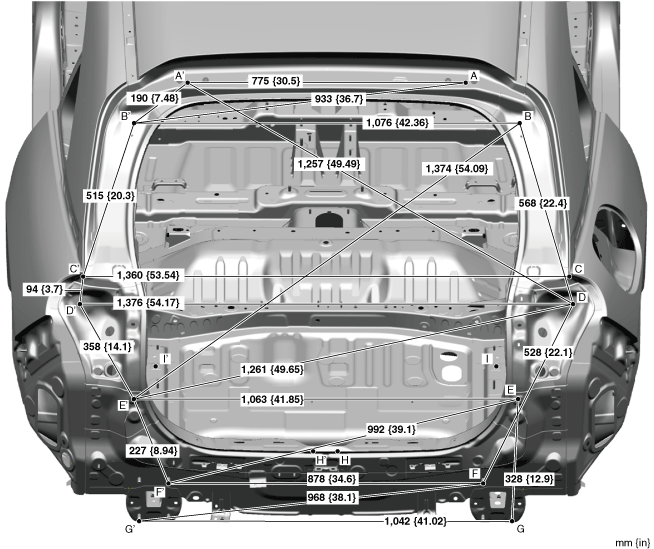

REAR BODY STRAIGHT-LINE DIMENSIONS [DIMENSIONS]
id098010990800
a30zzb00000117
|
a30zzb00000118
|
a30zzb00000119
|
|

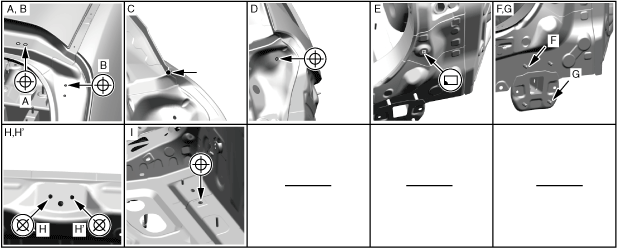

Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Liftgate hinge installation hole
|
φ12 {0.47}
|
|
B
|
Stay damper installation nut
|
M6
|
|
C
|
Cabin side frame (outer) (rear fender panel) projection location
|
—
|
|
D
|
Rear combination light installation hole
|
φ8 {0.31}
|
|
E
|
Rear bumper grommet installation square hole
|
9 x 9
{0.35 x 0.35}
|
|
F
|
Rear bumper reinforcement installation bolt
|
M10
|
|
G
|
Rear bumper reinforcement installation bolt
|
M10
|
|
H
|
Liftgate lock striker installation nut
|
M8
|
|
I
|
Floor side panel No.1 datum hole
|
φ12 {0.47}
|
