CONSTRUCTION STANDARD VALUES [CONSTRUCTION STANDARD VALUES]

id0980c0740300

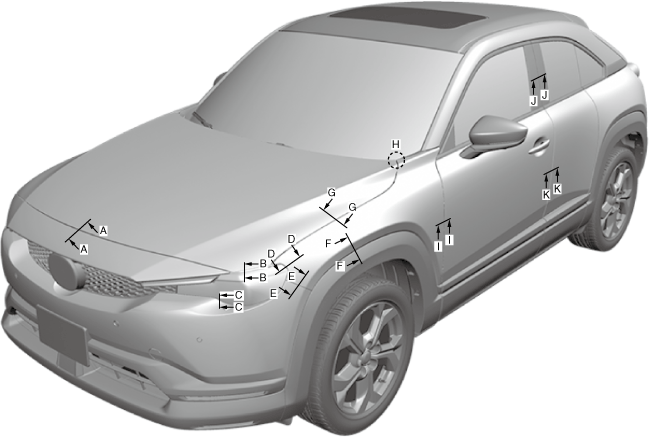

Front View

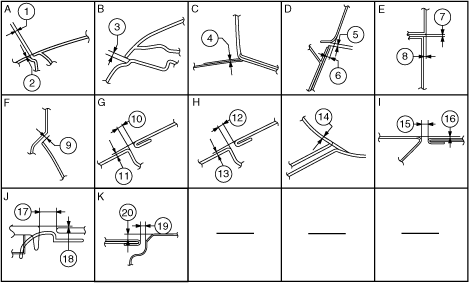

a30zzb00000042

a30zzb00000043

No.

Measurement part

Standard values (mm {in})

Maximum values (mm {in})

Minimum values (mm {in})

Parallelism (mm {in})

A

1

3.5 {0.14}

5.3 {0.21}

1.7 {0.067}

2.0 {0.079}

2

0

2.0 {0.079}

-2.0 {-0.079}

-

B

3

7.8 {0.31}

9.7 {0.38}

5.9 {0.23}

-

C

4

1.8 {0.071}

3.3 {0.13}

0.3 {0.012}

-

D

5

1.8 {0.071}

3.1 {0.12}

0.5 {0.02}

-

6

0

1.3 {0.051}

-1.3 {-0.051}

-

E

7

0.5 {0.02}

1.3 {0.051}

0

-

8

-0.5 {-0.02}

0.2 {0.008}

-1.2 {-0.047}

-

F

9

0.5 {0.02}

0.8 {0.03}

0.5 {0.02}

-

G

10

3.2 {0.13}

4.2 {0.17}

2.7 {0.11}

1.0 {0.039}

11

0

1.0 {0.039}

-1.0 {-0.039}

-

H

12

3.9 {0.15}

4.9 {0.19}

2.9 {0.11}

1.0 {0.039}

13

0

1.0 {0.039}

-1.0 {-0.039}

-

14

0

1.5 {0.059}

-1.5 {-0.059}

-

I

15

3.3 {0.13}

4.3 {0.16}

2.6 {0.10}

1.0 {0.039}

16

0

0.7 {0.03}

-1.0 {-0.039}

-

J

17

4.6 {0.18}

6.6 {0.26}

2.6 {0.10}

2.0 {0.079}

18

0

2.0 {0.079}

-2.0 {-0.079}

-

K

19

4.0 {0.16}

5.0 {0.20}

3.0 {0.12}

1.0 {0.039}

20

0

1.0 {0.039}

-1.0 {-0.039}

-

No.	Measurement part	Standard values (mm {in})	Maximum values (mm {in})	Minimum values (mm {in})	Parallelism (mm {in})
A	1	3.5 {0.14}	5.3 {0.21}	1.7 {0.067}	2.0 {0.079}
2	0	2.0 {0.079}	-2.0 {-0.079}	-
B	3	7.8 {0.31}	9.7 {0.38}	5.9 {0.23}	-
C	4	1.8 {0.071}	3.3 {0.13}	0.3 {0.012}	-
D	5	1.8 {0.071}	3.1 {0.12}	0.5 {0.02}	-
6	0	1.3 {0.051}	-1.3 {-0.051}	-
E	7	0.5 {0.02}	1.3 {0.051}	0	-
8	-0.5 {-0.02}	0.2 {0.008}	-1.2 {-0.047}	-
F	9	0.5 {0.02}	0.8 {0.03}	0.5 {0.02}	-
G	10	3.2 {0.13}	4.2 {0.17}	2.7 {0.11}	1.0 {0.039}
11	0	1.0 {0.039}	-1.0 {-0.039}	-
H	12	3.9 {0.15}	4.9 {0.19}	2.9 {0.11}	1.0 {0.039}
13	0	1.0 {0.039}	-1.0 {-0.039}	-
14	0	1.5 {0.059}	-1.5 {-0.059}	-
I	15	3.3 {0.13}	4.3 {0.16}	2.6 {0.10}	1.0 {0.039}
16	0	0.7 {0.03}	-1.0 {-0.039}	-
J	17	4.6 {0.18}	6.6 {0.26}	2.6 {0.10}	2.0 {0.079}
18	0	2.0 {0.079}	-2.0 {-0.079}	-
K	19	4.0 {0.16}	5.0 {0.20}	3.0 {0.12}	1.0 {0.039}
20	0	1.0 {0.039}	-1.0 {-0.039}	-

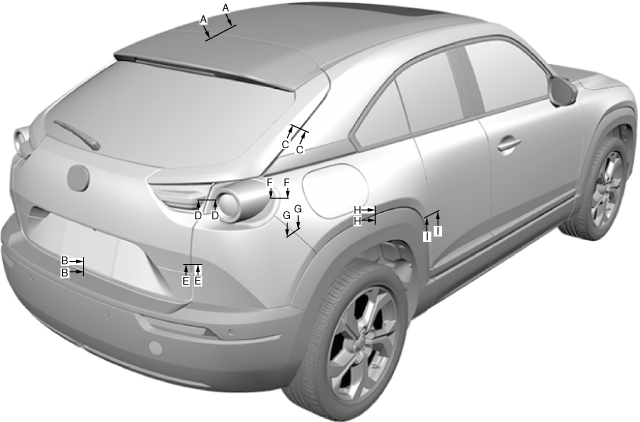

Rear View

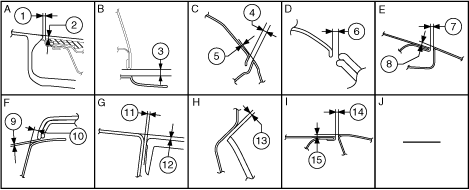

a30zzb00000044

a30zzb00000045

No.

Measurement part

Standard values (mm {in})

Maximum values (mm {in})

Minimum values (mm {in})

Parallelism (mm {in})

A

1

6.0 {0.24}

7.5 {0.30}

4.5 {0.18}

1.6 {0.063}

2

-1.1 {-0.043}

0.4 {0.016}

-2.6 {-0.10}

-

B

3

6.0 {0.24}

8.0 {0.31}

4.0 {0.16}

2.0 {0.079}

C

4

4.5 {0.18}

6.4 {0.25}

2.6 {0.10}

1.9 {0.075}

5

0.2 {0.008}

2.1 {0.083}

-1.7 {-0.067}

-

D

6

4.5 {0.18}

6.5 {0.26}

2.5 {0.098}

2.0 {0.079}

E

7

4.5 {0.18}

6.8 {0.27}

2.2 {0.087}

2.3 {0.091}

8

-1.0 {-0.039}

1.4 {0.055}

-3.4 {-0.13}

-

F

9

1.6 {0.063}

2.8 {0.11}

0.6 {0.024}

1.2 {0.047}

10

1.8 {0.071}

3.0 {0.12}

0.6 {0.024}

-

G

11

0.5 {0.02}

1.3 {0.051}

0.3 {0.012}

0.8 {0.03}

12

-0.5 {-0.02}

0.2 {0.008}

-1.2 {-0.047}

-

H

13

0.5 {0.02}

0.8 {0.03}

0.5 {0.02}

-

I

14

4.2 {0.17}

5.2 {0.20}

3.2 {0.13}

1.0 {0.039}

15

0

1.0 {0.039}

-1.0 {-0.039}

-

No.	Measurement part	Standard values (mm {in})	Maximum values (mm {in})	Minimum values (mm {in})	Parallelism (mm {in})
A	1	6.0 {0.24}	7.5 {0.30}	4.5 {0.18}	1.6 {0.063}
A	2	-1.1 {-0.043}	0.4 {0.016}	-2.6 {-0.10}	-
B	3	6.0 {0.24}	8.0 {0.31}	4.0 {0.16}	2.0 {0.079}
C	4	4.5 {0.18}	6.4 {0.25}	2.6 {0.10}	1.9 {0.075}
C	5	0.2 {0.008}	2.1 {0.083}	-1.7 {-0.067}	-
D	6	4.5 {0.18}	6.5 {0.26}	2.5 {0.098}	2.0 {0.079}
E	7	4.5 {0.18}	6.8 {0.27}	2.2 {0.087}	2.3 {0.091}
E	8	-1.0 {-0.039}	1.4 {0.055}	-3.4 {-0.13}	-
F	9	1.6 {0.063}	2.8 {0.11}	0.6 {0.024}	1.2 {0.047}
F	10	1.8 {0.071}	3.0 {0.12}	0.6 {0.024}	-
G	11	0.5 {0.02}	1.3 {0.051}	0.3 {0.012}	0.8 {0.03}
G	12	-0.5 {-0.02}	0.2 {0.008}	-1.2 {-0.047}	-
H	13	0.5 {0.02}	0.8 {0.03}	0.5 {0.02}	-
I	14	4.2 {0.17}	5.2 {0.20}	3.2 {0.13}	1.0 {0.039}
I	15	0	1.0 {0.039}	-1.0 {-0.039}	-
