DETERMINING OPEN CIRCUIT LOCATION (CAN-BUS No.5) [R.H.D.]

id100226003300

Caution

• Perform the following malfunction diagnosis only when it is diagnosed with a open circuit by CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [R.H.D.].)

• If the malfunctioning part is detected in the communication line, before disconnecting the related connector for inspection, press the connector in the connection direction to verify that there is no looseness or disconnection.

• When disconnecting the connector, verify that there is no damage, deformation, or corrosion of the connector terminals.

1. Verify the CAN system-related module DTCs and the module displayed in red or blue on the M-MDS screen.

2. Apply the communication error DTC and the module displayed in red or blue to the DTC output pattern and malfunctioning location, and select the possible cause for the diagnostic result and the reference for the inspection item. (See DTC Output Pattern And Malfunctioning Location.)

Note

• The open circuit location can be determined by the DTC indicated in the DTC output pattern and malfunctioning location chart. DTCs not listed in the chart are not used for the determination of the open circuit location. (See DTC Output Pattern And Malfunctioning Location.)

• The module may be displayed in red or blue on the M-MDS screen even if there is no malfunction depending on the vehicle specification.

3. Inspect the possible cause and inspection item of the applicable malfunctioning part.

DTC Output Pattern And Malfunctioning Location

Cross (×): Communication error-related DTC

M-MDS display	DTC	DTC output pattern and malfunctioning location
DTC output module	DTC	DTC output pattern and malfunctioning location
PCM (e-SKYACTIV)	U0100:00
	U0103:00
	U0121:00
	U0129:00
	U0131:00
	U0140:00					×
	U0151:00
	U0155:00
	U0156:00
	U0164:00
	U016B:00
	U01BA:00
	U0291:00
	U102D:00
	U2121:00
	U212E:00
	U2131:00
	U2133:00
Parking lock actuator	U0100:00
	U0115:00
	U0100:41
	U0100:82
Electronically controlled brake unit	U0100:00
	U0131:00
	U0140:00					×
	U0151:00
	U0155:00
	U0164:00
	U2121:00
	U212E:00
	U2131:00
SAS control module	U0140:00					×
	U0155:00
	U0155:41
	U0155:82
	U0156:00
	U0156:41
	U0156:82
Auto leveling control module	U0122:87
	U212A:87
	U212B:87					×
	U212D:87
Adaptive LED headlights control module	U0122:87
	U0126:87
	U0155:87
	U2121:87
	U212A:87
	U212B:87					×
	U212D:87
Selector lever	U0100:00
	U0121:00
	U0140:00					×
	U212B:00					×
EPS control module	U0100:00
	U0121:00
	U0140:00					×
	U2121:00					×
Vehicle control module (VCM)	U0100:00
	U0101:00
	U0121:00
	U0126:00
	U0131:00
	U0140:00					×
	U0151:00
	U0155:00
	U0156:00
	U0164:00
	U2120:00	×		×		×
	U2122:00
	U2123:00
	U2125:00		×	×		×
	U2126:00
	U212E:00
	U2131:00
	U2132:00				×	×
	U2133:00
	U2139:00
	U213A:00
Body control module (BCM)	U0100:00
	U0101:00
	U0103:00
	U0103:87
	U0111:00
	U0115:00
	U0121:00
	U0121:87
	U0126:00
	U0131:00
	U0151:00
	U0155:00
	U0156:00
	U0158:00
	U0164:00
	U016B:00
	U0182:00
	U0198:00
	U01BA:00
	U2121:49
	U212A:00
	U212D:00
	U212E:00
	U2131:00
	U2133:00
	U2135:00
	U213A:00
	U213B:00
	U213C:00
	U2147:00
Dash-electrical supply unit	U0100:00
	U0121:00
	U0140:00					×
	U0151:00
	U0156:00
	U016B:00
	U212E:00
	U2131:00
	U2133:00
	U213A:00
Heat pump control unit	U2133:00
	U0140:00					×
	U0164:00
Connectivity master unit (CMU)	U0101:00
	U0131:00
	U0140:00					×
	U0151:00
	U0155:00
	U0198:00
	U2121:00
	U213C:00
	U213E:00
Emergency call unit	U0140:00					×
	U0151:00
	U0164:00
	U213C:00
Approaching vehicle audible system device	U0101:00
Approaching vehicle audible system device	U0121:00
M-MDS display module		Module displayed in red or blue
Forward sensing camera (FSC)		×		×		×
Driver monitoring camera unit			×	×		×
Parking assist unit (optical) / 360° view monitor control module					×	×
Diagnostic result
Possible cause and inspection item		A	B	C	D	E

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Forward sensing camera (FSC) power supply voltage or body ground malfunction

• Open circuit in wiring harness between forward sensing camera (FSC) and connector C-27

• Open circuit in wiring harness between connector C-27 and connector C-16

• Open circuit in wiring harness between connector C-16 and connector C-38

• Connector C-27 malfunction

• Connector C-16 malfunction

• Connector C-38 malfunction

• Forward sensing camera (FSC) malfunction

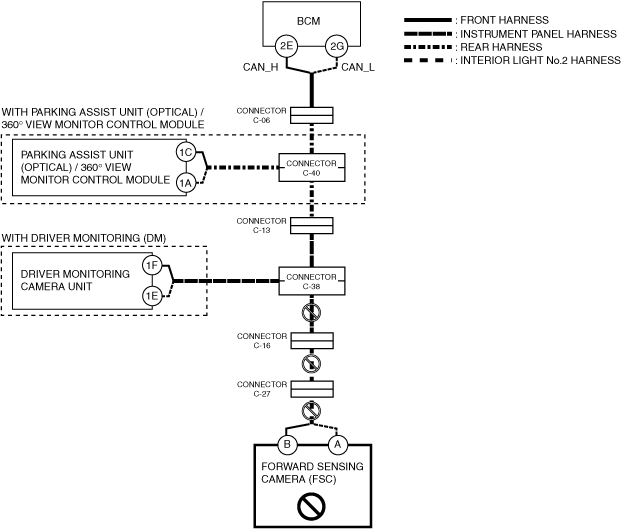

System wiring diagram

a30zzw00006592

Inspection item

• Forward sensing camera (FSC) power supply voltage-related wiring harness and fuse

• Forward sensing camera (FSC) body ground related wiring harness

• Forward sensing camera (FSC) connector

• Connector C-27

• Connector C-16

• Connector C-38

• Wiring harness between forward sensing camera (FSC) terminal B and connector C-27

• Wiring harness between forward sensing camera (FSC) terminal A and connector C-27

• Wiring harness between connector C-27 and connector C-16

• Wiring harness between connector C-16 and connector C-38

• Forward sensing camera (FSC)

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Driver monitoring camera unit power supply voltage or body ground malfunction

• Open circuit in wiring harness between driver monitoring camera unit and connector C-38

• Connector C-38 malfunction

• Driver monitoring camera unit malfunction

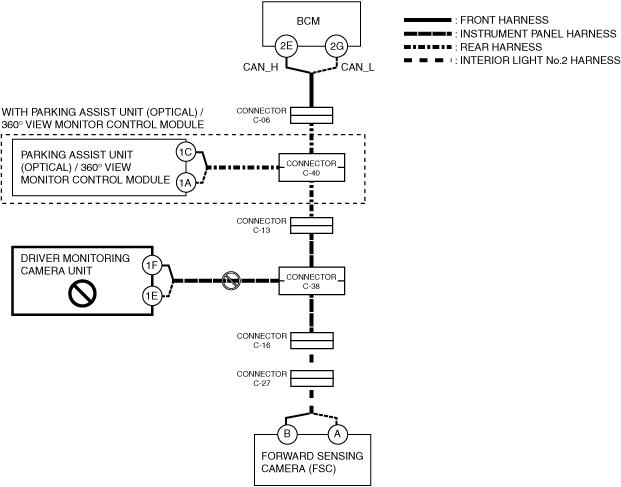

System wiring diagram

a30zzw00006593

Inspection item

• Driver monitoring camera unit power supply voltage-related wiring harness and fuse

• Driver monitoring camera unit body ground related wiring harness

• Driver monitoring camera unit connector

• Connector C-38

• Wiring harness between driver monitoring camera unit terminal 1F and connector C-38

• Wiring harness between driver monitoring camera unit terminal 1E and connector C-38

• Driver monitoring camera unit

With parking assist unit (optical) / 360°view monitor control module

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between connector C-38 and connector C-13

• Open circuit in wiring harness between connector C-13 and connector C-40

• Connector C-38 malfunction

• Connector C-13 malfunction

• Connector C-40 malfunction

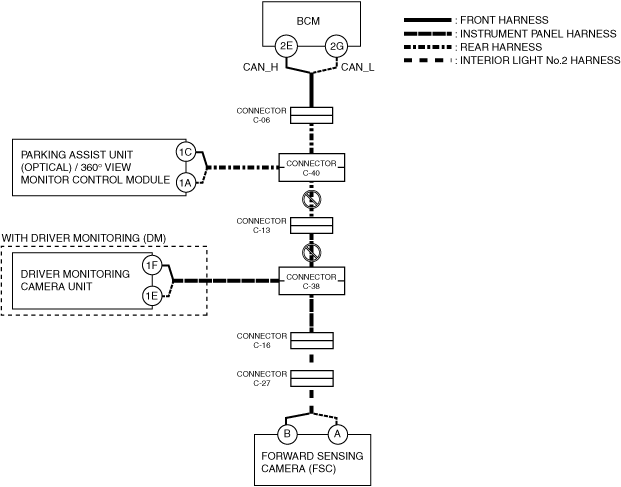

System wiring diagram

a30zzw00006594

Inspection item

• Wiring harness between connector C-38 and connector C-13

• Wiring harness between connector C-13 and connector C-40

• Connector C-38

• Connector C-13

• Connector C-40

Without parking assist unit (optical) / 360°view monitor control module

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Body control module (BCM) power supply voltage or body ground malfunction

• Open circuit in wiring harness between body control module (BCM) and connector C-06

• Open circuit in wiring harness between connector C-06 and connector C-13

• Open circuit in wiring harness between connector C-13 and connector C-38

• Connector C-06 malfunction

• Connector C-13 malfunction

• Connector C-38 malfunction

• Body control module (BCM) malfunction

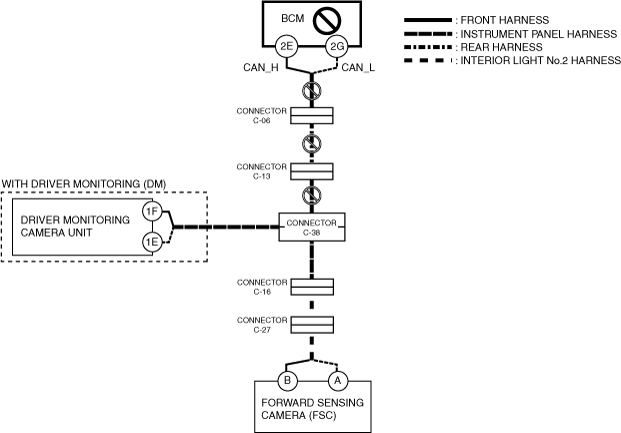

System wiring diagram

a30zzw00006595

Inspection item

• Body control module (BCM) power supply voltage-related wiring harness and fuse

• Body control module (BCM) body ground related wiring harness

• Body control module (BCM) connector

• Wiring harness between body control module (BCM) terminal 2E and connector C-06

• Wiring harness between body control module (BCM) terminal 2G and connector C-06

• Wiring harness between connector C-38 and connector C-13

• Wiring harness between connector C-13 and connector C-06

• Connector C-38

• Connector C-13

• Connector C-06

• Body control module (BCM)

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Parking assist unit (optical) / 360° view monitor control module power supply voltage or body ground malfunction

• Open circuit in wiring harness between parking assist unit (optical) / 360° view monitor control module and connector C-40

• Connector C-40 malfunction

• Parking assist unit (optical) / 360° view monitor control module malfunction

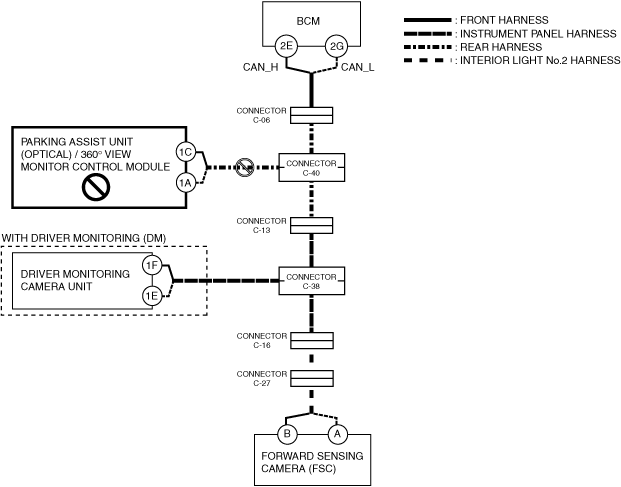

System wiring diagram

a30zzw00006596

Inspection item

• Parking assist unit (optical) / 360° view monitor control module power supply voltage-related wiring harness and fuse

• Parking assist unit (optical) / 360° view monitor control module body ground related wiring harness

• Parking assist unit (optical) / 360° view monitor control module connector

• Wiring harness between parking assist unit (optical) / 360° view monitor control module terminal 1C and connector C-40

• Wiring harness between parking assist unit (optical) / 360° view monitor control module terminal 1A and connector C-40

• Connector C-40

• Parking assist unit (optical) / 360° view monitor control module

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Body control module (BCM) power supply voltage or body ground malfunction

• Open circuit in wiring harness between body control module (BCM) and connector C-06

• Open circuit in wiring harness between connector C-06 and connector C-40

• Connector C-06 malfunction

• Connector C-40 malfunction

• Body control module (BCM) malfunction

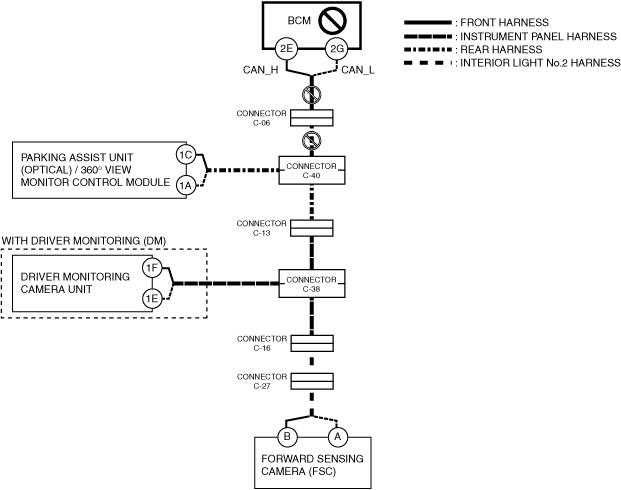

System wiring diagram

a30zzw00006597

Inspection item

• Body control module (BCM) power supply voltage-related wiring harness and fuse

• Body control module (BCM) body ground related wiring harness

• Body control module (BCM) connector

• Wiring harness between body control module (BCM) terminal 2E and connector C-06

• Wiring harness between body control module (BCM) terminal 2G and connector C-06

• Wiring harness between connector C-06 and connector C-40

• Connector C-06

• Connector C-40

• Body control module (BCM)
