DRIVER MONITORING CAMERA

id151100006400

Purpose

Driver monitoring camera

•  The driver monitoring camera shoots the driver's head position, face direction, and line of vision, opening/closing angle of the driver’s eyes, and opening/closing angle of the driver’s mouth.

Driver monitoring camera LED

•  The driver monitoring camera LED assists the driver monitoring camera in shooting during nighttime or under conditions where it is exposed to direct sunlight.

Function

Driver monitoring camera

•  Sends a video signal to the driver monitoring camera unit.

Driver monitoring camera LED

•  Inputs a video signal from the driver monitoring camera unit and shines infrared light on the driver.

Construction

Driver monitoring camera

•  The driver monitoring camera is located next to the center display.

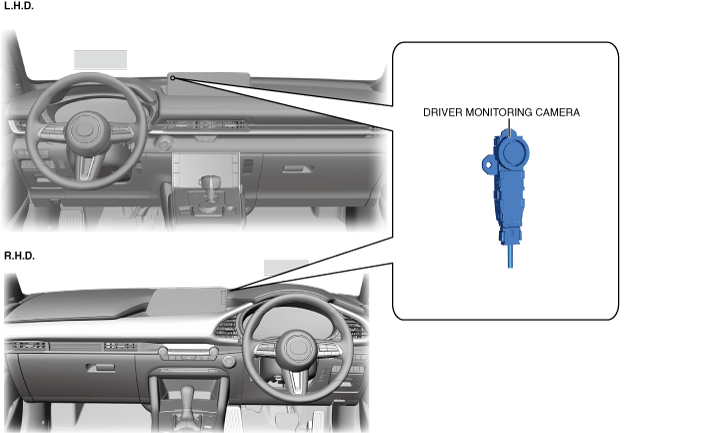

a30zzn00002212

Note

•  It is not necessary to perform aiming when replacing a camera.

Driver monitoring camera LED

•  The driver monitoring camera LED is located next to the center display.

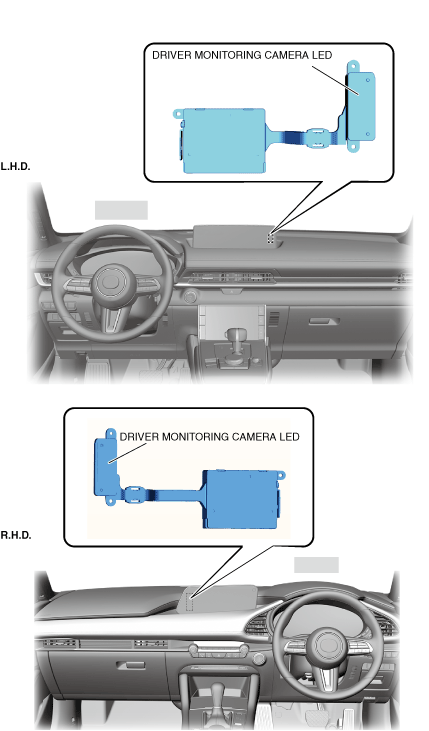

a30zzn00002213
