REMOTE TUNER (RT) [(E)]


id1600000003a2


Purpose

•  Controls the audio signal from the entertainment system-related parts.

Function


Tuner switching function

•  The remote tuner (RT) switches the tuner mode built-into the remote tuner (RT) based on the control signal sent from the connectivity master unit (CMU).


Audio signal output function

•  The remote tuner (RT) outputs the audio signal to the audio amplifier.


MOST signal conversion function

Note
•  The MOST signal wiring harness is used in the following cases:
HD radio
―  Radio broadcast logo, album art, or song name is sent to CMU from remote tuner (RT)
•  The remote tuner (RT) creates data from the radio waves received from the glass antenna and converts the created data to a MOST signal and sends it to the CMU.


FM phase diversity function

•  Reception sensitivity improvement and noise reduction have been achieved by receiving FM radio signals from multiple antenna amplifiers, and synthesizing the received FM radio signals.


Specification

Item

Specification

Rated voltage
(V)
12
Frequency range
FM
(MHz)
87.5—108


Construction

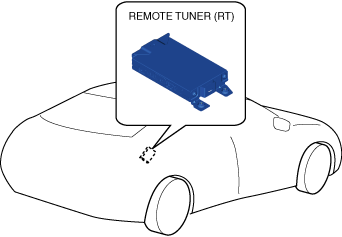

bmcozp00000790

Operation

•  For the remote tuner (RT) operation, refer to the [ENTERTAINMENT SYSTEM]. (See ENTERTAINMENT SYSTEM [(E)].)
