CENTER DISPLAY [(E)]

id1600000004a2

Note

• iPod, iPhone, and Apple CarPlay are registered trademarks of Apple Inc.

• Android, and Android Auto are registered trademarks of Google LLC.

Purpose

• The center display displays entertainment system and vehicle information.

Function

• The center display displays video images based on the signal sent by the GMSL signal from the connectivity master unit (CMU).

• The GMSL communication pathway between the CMU and the center display corresponds to HDCP.

Temperature detection function

• The center display detects temperature using a temperature sensor.

• The center display converts the temperature detected by the temperature sensor to an electrical signal (GMSL signal) and sends it to the CMU.

Note

• If the center display receives a temperature warning pop-up screen display request signal (GMSL signal) from the CMU, it displays the temperature warning pop-up screen on the LCD.

Display information

• The information displayed by the center display is as follows: Refer to the referenced section for details of the displayed information.

Display content

Reference

Home screen

(See Home screen.)

Information screen

(See Information screen.)

Entertainment screen

(See Entertainment screen.)

Communication screen

(See Communication screen.)

Navigation screen

(See Navigation screen.)

Setting screen

(See Settings screen.)

Apple CarPlay™

(See Apple CarPlay™.)

Android Auto™

(See Android Auto™.)

Display content	Reference
Home screen	(See Home screen.)
Information screen	(See Information screen.)
Entertainment screen	(See Entertainment screen.)
Communication screen	(See Communication screen.)
Navigation screen	(See Navigation screen.)
Setting screen	(See Settings screen.)
Apple CarPlay™	(See Apple CarPlay™.)
Android Auto™	(See Android Auto™.)

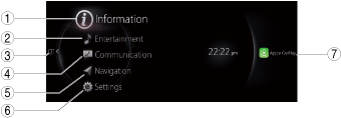

Home screen

• The home screen displays entertainment system information.

• When the main power is switched to ACC or ON (READY off or on), the home screen is displayed in the center display.

bmcozp00001202

No.

Menu

1

Information screen

2

Entertainment screen

3

Notifications screen

4

Communication screen

5

Navigation screen^*1

6

Setting screen

7

Apple CarPlay™^*2

Android Auto™^*3

*1 :With car-navigation system

*2 :When Apple CarPlay™ is available.

*3 :When Android Auto™ is available.

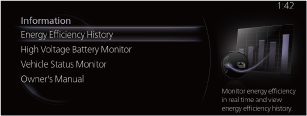

Information screen

• Information concerning energy efficiency history, high voltage battery monitor, vehicle status monitor, owner's manual^*4 and warnings can be verified.

bmcozp00000798

Display content

Reference

Energy efficiency history

(See Energy efficiency history .)

High voltage battery monitor

(See Vehicle Status Monitor.)

Vehicle Status Monitor

(See Vehicle Status Monitor.)

Owner's manual^*4

(See Owner's Manual (With In-vehicle Digital Owner's Manual).)

Display content	Reference
Energy efficiency history	(See Energy efficiency history .)
High voltage battery monitor	(See Vehicle Status Monitor.)
Vehicle Status Monitor	(See Vehicle Status Monitor.)
Owner's manual^*4	(See Owner's Manual (With In-vehicle Digital Owner's Manual).)

*4 :With In-vehicle Digital Owner's Manual

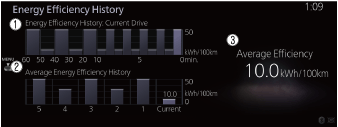

Energy efficiency history

• The information regarding the energy efficiency is displayed.

Display

Content

1

•  Displays the energy efficiency for the past 60 minutes.

―  Displays the energy efficiency every minute for the past 1 to 10 minutes.

―  Displays the energy efficiency every 10 minutes for the past 10 to 60 minutes.

2

Displays the average energy efficiency over the past 5 resets and after the current reset.

3

•  Calculates the average energy efficiency at regular intervals after vehicle travel starts, and displays it.

Display	Content
	1	• Displays the energy efficiency for the past 60 minutes. ― Displays the energy efficiency every minute for the past 1 to 10 minutes. ― Displays the energy efficiency every 10 minutes for the past 10 to 60 minutes.
2	Displays the average energy efficiency over the past 5 resets and after the current reset.
3	• Calculates the average energy efficiency at regular intervals after vehicle travel starts, and displays it.

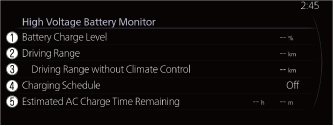

High voltage battery monitor

• Displays the information related to the high voltage battery (HV Battery).

Display

Content

1

The remaining amount of power in the drive battery is indicated.

2

The remaining distance-to-full discharge is indicated.

3

The remaining distance-to-full discharge with the climate control system off is indicated.

4

The next scheduled charging date is indicated.

5

The estimated time until normal charging is completed is indicated.

Display	Content
	1	The remaining amount of power in the drive battery is indicated.
2	The remaining distance-to-full discharge is indicated.
3	The remaining distance-to-full discharge with the climate control system off is indicated.
4	The next scheduled charging date is indicated.
5	The estimated time until normal charging is completed is indicated.

Vehicle Status Monitor

• Displays the vehicle status monitor information.

Vehicle Status Monitor verification procedure

1. Select the “Information” button on the Home screen.

2. Select [Vehicle Status Monitor] on the information screen to display the warning guidance.

• The buttons on the menu screen operate as follows:

Item

Explanation

Serious Malfunction(s)

Displayed if there is a serious problem.

Important Notice(s)

Displayed if there is recall information.

Vehicle Warning Messages

If there is a problem with the vehicle, information about the problem is displayed.

Next Service

The traveled distance manually set by the customer is displayed.

Maintenance Details

Next Service

The next maintenance period manually set by the customer is displayed

Battery Health

The maximum capacity of the drive battery is displayed.

Vehicle Maintenance Settings

Next Service Date

The method of setting the next maintenance can be selected from the following.

• Automatic

• Manual

Set Next Service Date

If [Next Service Date] is set to [Manual], the next maintenance date can be set.

Set Next Service Distance

If [Next Service Date] is set to [Manual], the traveled distance until the next maintenance period can be set.

Reset Service Interval

The [Next Service] content can be reset.

Item	Explanation
Serious Malfunction(s)	Displayed if there is a serious problem.
Important Notice(s)	Displayed if there is recall information.
Vehicle Warning Messages	If there is a problem with the vehicle, information about the problem is displayed.
Next Service	The traveled distance manually set by the customer is displayed.
Maintenance Details	Next Service	The next maintenance period manually set by the customer is displayed
Battery Health	The maximum capacity of the drive battery is displayed.
Vehicle Maintenance Settings	Next Service Date	The method of setting the next maintenance can be selected from the following. • Automatic • Manual
Set Next Service Date	If [Next Service Date] is set to [Manual], the next maintenance date can be set.
Set Next Service Distance	If [Next Service Date] is set to [Manual], the traveled distance until the next maintenance period can be set.
Reset Service Interval	The [Next Service] content can be reset.

Owner's Manual (With In-vehicle Digital Owner's Manual)

Learn about Mazda features, safety information, maintenance, and more.

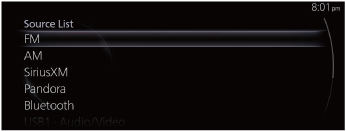

Entertainment screen

• When the entertainment button on the home screen is selected, the entertainment screen is displayed. The following audio functions in the table below are available.

bmcozp00000418

Display content

Function

FM

Switches to FM radio screen.

Bluetooth <Device Name>

Switches to Bluetooth^® audio screen.

Note

•  If available, the connecting device name is displayed. When Bluetooth^® is not available, such as no device is connected, only Bluetooth^® is displayed.

USB1 <Device Name>

Switches to USB audio/USB video screen.

Note

•  If available, the connecting device name is displayed. When USB1 is not available, such as no device is connected, only USB1 is displayed.

USB2 <Device Name>

Switches to USB audio/USB video screen.

Note

•  If available, the connecting device name is displayed. When USB2 is not available, such as no device is connected, only USB2 is displayed.

Display content	Function
FM	Switches to FM radio screen.
Bluetooth <Device Name>	Switches to Bluetooth^® audio screen. Note • If available, the connecting device name is displayed. When Bluetooth^® is not available, such as no device is connected, only Bluetooth^® is displayed.
USB1 <Device Name>	Switches to USB audio/USB video screen. Note • If available, the connecting device name is displayed. When USB1 is not available, such as no device is connected, only USB1 is displayed.
USB2 <Device Name>	Switches to USB audio/USB video screen. Note • If available, the connecting device name is displayed. When USB2 is not available, such as no device is connected, only USB2 is displayed.

Note

• When iPhone® is connected to the USB port of the auxiliary jack/USB port/SD card slot hub, Apple CarPlay™ is indicated at the position of USB1 indicated on the center display.

• When Android™ is connected to the USB port of the auxiliary jack/USB port/SD card slot hub, Android Auto™ is indicated at the position of USB1 indicated on the center display.

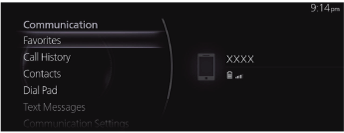

Communication screen

• SMS (Short Message Service), and Hands-free telephone (HF/TEL) functions can be used.

bmcozp00000419

Display content

Function

Favorites

Switches to the favorite screen.

Call History

Displays the call history.

Contacts

Displays the phone book.

Dial Pad

Switches to the dial screen for phone number input.

Text Messages

Switches to the text messages screen.

Communication Settings

Switches ON/OFF of the SMS notification function.

Display content	Function
Favorites	Switches to the favorite screen.
Call History	Displays the call history.
Contacts	Displays the phone book.
Dial Pad	Switches to the dial screen for phone number input.
Text Messages	Switches to the text messages screen.
Communication Settings	Switches ON/OFF of the SMS notification function.

Note

• If Bluetooth^® communication is not established between a mobile device such as a Bluetooth^®-enabled smart phone, the functions dependent on the mobile device are displayed in gray and they are not available.

• If there any unread notification or SMS, the number of unread messages is displayed beside each item name. The number of missed call is displayed next to “Call History”.

Navigation screen

• When the navigation button on the home screen is selected, the navigation screen is displayed. Navigation information such as the current position and route guidance to destination is displayed on this screen.

Settings screen

• The following settings can be changed. For details, refer to the [ENTERTAINMENT SYSTEM] setting function. (See ENTERTAINMENT SYSTEM [(E)].)

Menu

Reference

In-Vehicle Displays

(See ENTERTAINMENT SYSTEM [(E)].)

Configures settings and content for all in-vehicle displays.

Audio Settings

Configures the in-vehicle listening experience.

Vehicle Settings

Configures vehicle convenience features.

Safety Settings

Configures safety and driver assistance features.

Connectivity Settings

Connection settings can be configured for linking Bluetooth® and Smartphone functions.

System Settings

Configures language, time, and other general settings.

Menu	Reference
In-Vehicle Displays	(See ENTERTAINMENT SYSTEM [(E)].)	Configures settings and content for all in-vehicle displays.
Audio Settings	Configures the in-vehicle listening experience.
Vehicle Settings	Configures vehicle convenience features.
Safety Settings	Configures safety and driver assistance features.
Connectivity Settings	Connection settings can be configured for linking Bluetooth® and Smartphone functions.
System Settings	Configures language, time, and other general settings.

Apple CarPlay™

Apple CarPlay™ home screen display procedure

• The Apple CarPlay™ home screen is displayed when any of the following operations are performed.

― Select [Apple CarPlay™] on home screen.

― Long-press commander switch HOME button.

• The display content is as follows.

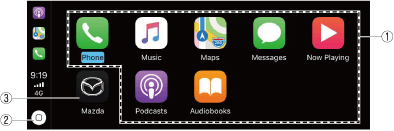

Apple CarPlay™ mode home screen

Display	Content
	1	Launch the Apple CarPlay™ application.
	2	Displays the Apple CarPlay™ home screen.
	3	Displays the Mazda Connect screen.

Android Auto™

Android Auto™ home screen display procedure

• The Android Auto™ home screen is displayed when any of the following operations are performed.

― Select [Android Auto™] on home screen.

― Long-press commander switch HOME button.

• The display content is as follows.

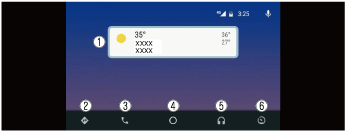

Android Auto™mode home screen

Display	Content
	1	Displays the use history of each application. The displayed contents differdepending on the application that has been started and its status.
	2	Switches to the map application.
	3	Switches to the call mode.
	4	Displays the Android Auto™ home screen.
	5	Switches to the Music application.
	6	Switches to the Mazda Connect screen.

Construction

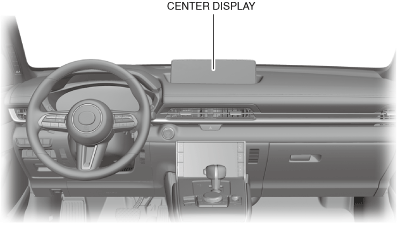

• The center display is installed in the center of the dashboard.

• The center display has a built-in temperature sensor.

bmcozp00001203
