SPEAKER

id160000000900


Without Bose®


Purpose

•  Converts the audio signal from the audio amplifier to sound.


Function

•  Full-range speakers, which can output wide-range sound from low to high frequency, have been adopted.


Specification

Item

Front door speaker

Rear door speaker

Cowl side woofer

Tweeter
Max. input
(W)
25
25
25
25
Rated impedance
(ohm)
3.2 — 4.0
3.2 — 4.0
3.2 — 4.0
3.9 — 4.7
Size
(cm {in})
8 {3}
8 {3}
12 {5}
2.5 {1}

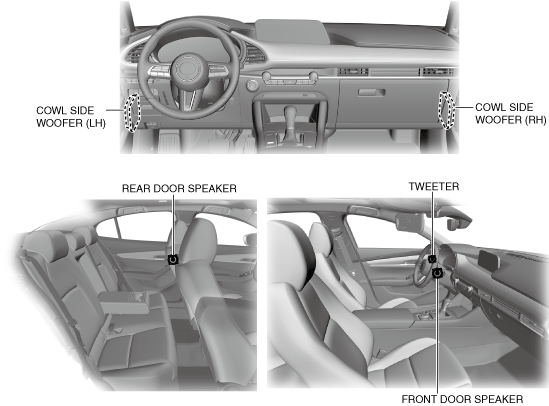

Construction

bmcozp00000430
Front door speaker/rear door speaker
•  A cone-shaped dynamic speaker has been adopted for each speaker.
•  A weight reduction was realized adopting pulp for the cone material and a strontium barium ferrite magnet.
Cowl side woofer
•  A cone-shaped dynamic speaker has been adopted for each speaker.
•  A weight reduction was achieved by using pulp for the cone material and adopting a ferrite magnet.
Tweeter
•  A cone-shaped dynamic speaker has been adopted for each speaker.
•  Polyimide for the cone material and a strontium ferrite magnet have been adopted.


Operation

1.  The speaker sends the audio signal (current) from the audio unit to the voice coil.
2.  When the audio signal (current) is sent to the voice coil, the coil becomes magnetized and a magnetic field occurs. Because the voice coil and the magnet pull and repel each other in the magnetic field, the voice coil vibrates.
3.  Because the voice coil is wrapped around the voice coil bobbin, the voice coil bobbin vibrates when the voice coil vibrates.
4.  When the voice coil bobbin vibrates, the cone (diaphragm) installed to the voice coil bobbin vibrates and generates sound.
am5ezn00001291


With Bose®


Purpose

•  Converts the audio signal from the audio amplifier to sound.
•  High quality sound is provided for the driver and passengers.


Function

•  Full-range speakers, which can output wide-range sound from low to high frequency, have been adopted.
•  A better sound effect and clear sound have been achieved by using tweeters (speaker for upper register sound range) which differ the range of the output sound and front door speaker (speaker for lower register sound range).


Specification

Item

Front door speaker

Rear door speaker

Rear speaker

Front center speaker

Cowl side woofer

Tweeter

Bass-box
Rated impedance
(ohm)
3.6
3.6
3.6
3.6
1.10
3.4
1.24
Size
(cm {in})
8 {3}
8 {3}
8 {3}
6.5 {2.5}
11.5 {4.5}
2.5 {1}
13 {5}

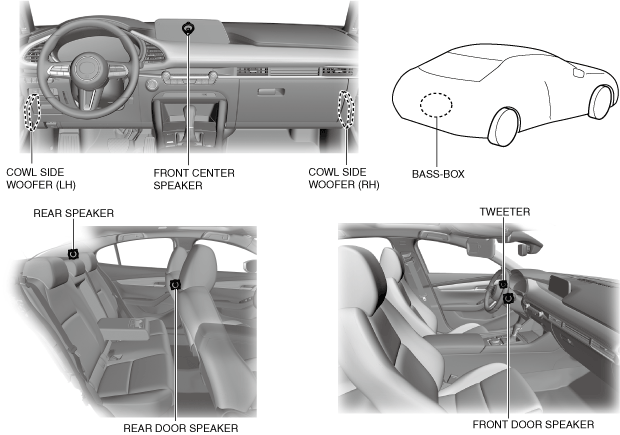

Construction

bmcozp00000802
•  A better sound effect is achieved by the use of speakers which differ the range of the output sound.
―  Front door speaker (speaker for all sound ranges)
―  Rear door speaker (speaker for all sound ranges)
―  Tweeter (speaker for medium-to-high-sound range)
―  Front center speaker (speaker for medium-to-high-sound range)
―  Rear speaker (speaker for medium-to-high-sound range)
―  Cowl side woofer (speaker for deep bass sound range)
―  Bass-box (speaker for deep bass sound range)
•  Refer to the Workshop Manual for the [ENTERTAINMENT LOCATION INDEX].


Operation

1.  The speaker sends the audio signal (current) from the audio unit to the voice coil.
2.  When the audio signal (current) is sent to the voice coil, the coil becomes magnetized and a magnetic field occurs. Because the voice coil and the magnet pull and repel each other in the magnetic field, the voice coil vibrates.
3.  Because the voice coil is wrapped around the voice coil bobbin, the voice coil bobbin vibrates when the voice coil vibrates.
4.  When the voice coil bobbin vibrates, the cone (diaphragm) installed to the voice coil bobbin vibrates and generates sound.
