SEAL COVER REMOVAL/INSTALLATION

id301000100100

Removal

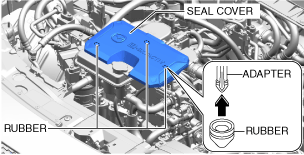

1.  Remove the seal cover adapter from the coolant reserve tank and the rubber of the DC-DC converter.

a30zzw00004055

Installation

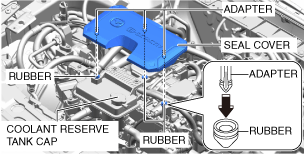

1.  Align the seal cover to the coolant reserve tank cap.

2.  Align the rubber shown in the figure with the adapter on the seal cover.

a30zzw00004056

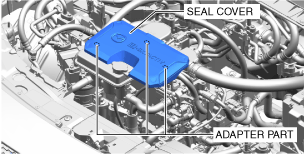

3.  Hold down the adapter part of the seal cover and insert it into the coolant reserve tank and the rubber of the DC-DC converter.

a30zzw00004057
