ACCELERATOR PEDAL REMOVAL/INSTALLATION

id301000100800

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

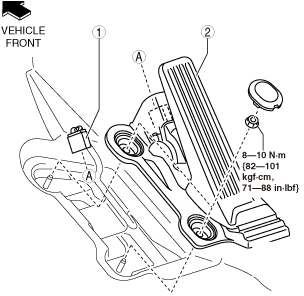

2.  Remove using the procedure shown in the figure.

a30zzw00004145

1	Accelerator pedal position sensor connector
2	Accelerator pedal

3.  Install in the reverse order of removal.
