•  The radiator disperses the coolant heat flowing inside the radiator by receiving wind blown against the vehicle while it is driven or wind produced by the cooling fan.

•  The radiator is installed in front of the motor compartment.

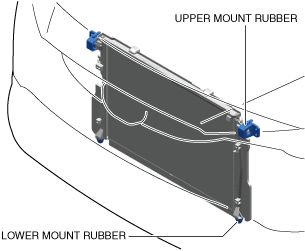

•  The radiator installation assists in absorbing vibration by supporting the radiator in 4 locations via the mount rubber.

a30zzn00000806

•  The radiator has adopted a cross flow-type with corrugated fins.

a30zzn00000807

•  The tank material is plastic and the core material is aluminum to achieve weight reduction.
