LEAD-ACID BATTERY REMOVAL/INSTALLATION

id301700000100

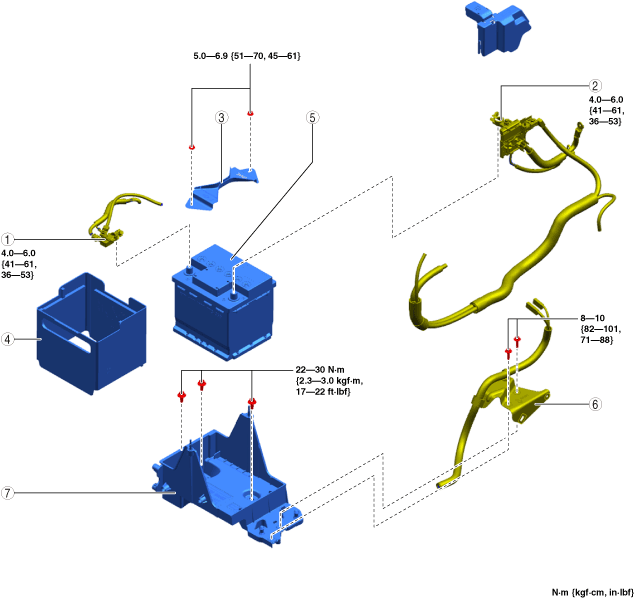

1. Remove using the procedure shown in the figure.

2. Install in the reverse order of removal.

a30zzw00004270

Lead-acid Battery Tray Installation Note

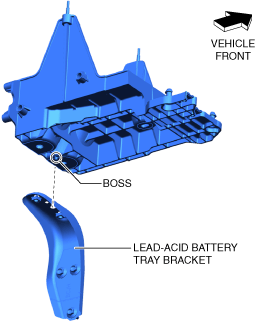

1. Set the boss on the lead-acid battery tray into the hole on the lead-acid battery tray bracket.

a30zzw00004271

2. Tighten the bolts in the order shown in the figure.

a30zzw00004272

Lead-acid Battery Box Installation Note

Install the lead-acid battery box so that the side with the bigger cutout points toward the electric motor side.

a30zzw00004973

Positive Lead-acid Battery Terminal Connection Note

Caution

• Connect the lead-acid battery terminal while pushing it down because the lead-acid battery terminal may loosen.

Negative Lead-acid Battery Terminal Connection Note

Caution

• Connect the lead-acid battery terminal while pushing it down because the lead-acid battery terminal may loosen.

1. Connect the negative lead-acid battery terminal so that the wiring harness does not block the upper part of the lead-acid battery filler cap.

a30zzw00004274

1	Negative lead-acid battery cable (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.) (See Negative Lead-acid Battery Terminal Connection Note.)
2	Positive lead-acid battery cable (See Positive Lead-acid Battery Terminal Connection Note.)
3	Battery clamp
4	Battery box (See Lead-acid Battery Box Installation Note.)
5	Battery
6	Bracket
7	Lead-acid battery tray (See Lead-acid Battery Tray Installation Note.)
