QBC (QUICK BATTERY CHARGE) TEMPERATURE SENSOR INSPECTION
id304000102400
1. Remove the rear mudguard on the right side.
(See MUDGUARD REMOVAL/INSTALLATION.)
2. Disconnect the negative lead-acid battery terminal.
(See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

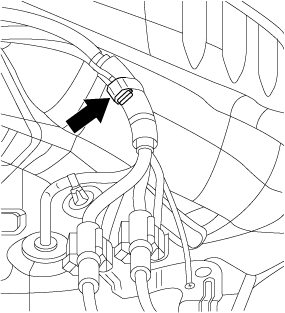

3. Disconnect the 10-pin connector shown in the figure below.
a30jjw00000129
|
4. Measure the resistance between the 10-pin connector terminals shown in the figure below.
a30jjw00000130
|
|
QBC temperature (°C {°F}) |
Resistance (Ω) |
|---|---|
|
0 {32}
|
32.19 - 35.57
|
|
5 {41}
|
27.83 - 30.75
|
|
10 {50}
|
24.17 - 26.71
|
|
15 {59}
|
21.09 - 23.31
|
|
20 {68}
|
18.49 - 20.43
|
|
25 {77}
|
16.24 - 17.98
|
|
30 {86}
|
14.39 - 15.89
|
Characteristic graph
a30zzw00002011
|
