STEERING SHIFT SWITCH REMOVAL/INSTALLATION

id304000103100

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

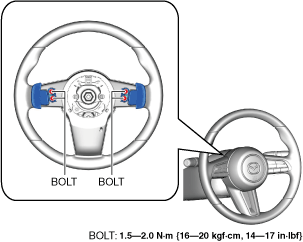

2.  Remove the bolts.

am3zzw00030673

3.  Pull out the steering shift switch from the steering wheel until the steering shift switch connector is visible.

ac30zw00004179

4.  Disconnect the steering shift switch connector.

5.  Remove the steering shift switch.

ac30zw00004180

6.  Install in the reverse order of removal.
