HOW TO USE THIS MANUAL
id000000700000
Description range
• This text describes maintenance procedures in terms of practical servicing, and is basically classified into the following five servicing items:
-
― Inspection
― Adjustment
― Replacement
― Removal/Installation
― Disassembly/Assembly
• In addition, part removal/installation procedures that can be understood by viewing the actual vehicle, jacking/lifting operations, cleaning/washing parts, and visual inspections are left out of this content but are carried out in the actual servicing.
Terminology
• Warnings, cautions, notes, standards, and maximum/minimum specifications are described in this manual.
Warning
-
― Indicates that serious injury or death could result if the warning is ignored while servicing.
Caution
-
― Indicates that bodily injury or damage to the vehicle, or both, could result if the caution is ignored while servicing.
Reference
-
― Supplementary explanations to facilitate servicing
Standard
-
― Indicates the permissible range value when inspecting and adjusting.
Maximum specification
-
― Indicates the maximum value or minimum value which must not be exceeded when inspecting and adjusting.
Symbols
• The 9 symbols shown in the figure below are used in the structural views. These symbols indicate the application position and location of use of materials during servicing.
|
Symbol
|
Meaning
|
Kind
|
 |
Apply oil
|
New appropriate engine oil or gear oil
|
 |
Apply brake fluid
|
New appropriate brake fluid
|
 |
Apply ATF
|
New appropriate ATF
|
 |
Apply continuously variable transaxle fluid
|
New appropriate continuously variable transaxle fluid
|
 |
Apply grease
|
Appropriate grease
|
 |
Apply sealant
|
Appropriate sealant
|
 |
Apply petroleum jelly
|
Appropriate petroleum jelly
|
 |
Replace part
|
O-ring, gasket
|
 |
Use SST or equivalent
|
Appropriate tools
|
Procedure Explanation
Inspection, adjustment procedure
-
• Inspection and adjustment procedures are described in steps. Important points regarding the location and contents of the procedures are explained in detail and shown in the illustrations.
Servicing procedure
-

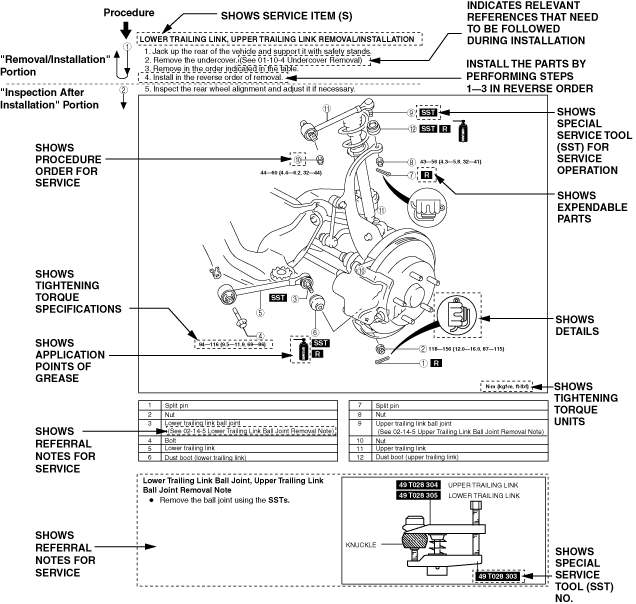

• Removal/installation and disassembly/assembly procedures are shown using figures so that the component part names, installed or assembled condition, and component units are understandable. However, removal/installation procedures which have few steps have only written instructions.
• In the structural view, the servicing procedure is indicated by numbers, and the grease application position, special service tool (SST) location of use, non-reusable parts, and tightening torque are specified.
• Procedure steps are numbered and the part that is the main point of that procedure is shown in the illustration with the corresponding number. For procedures which have important points in particular, such points are explained in detail as notes. Always refer to the notes.

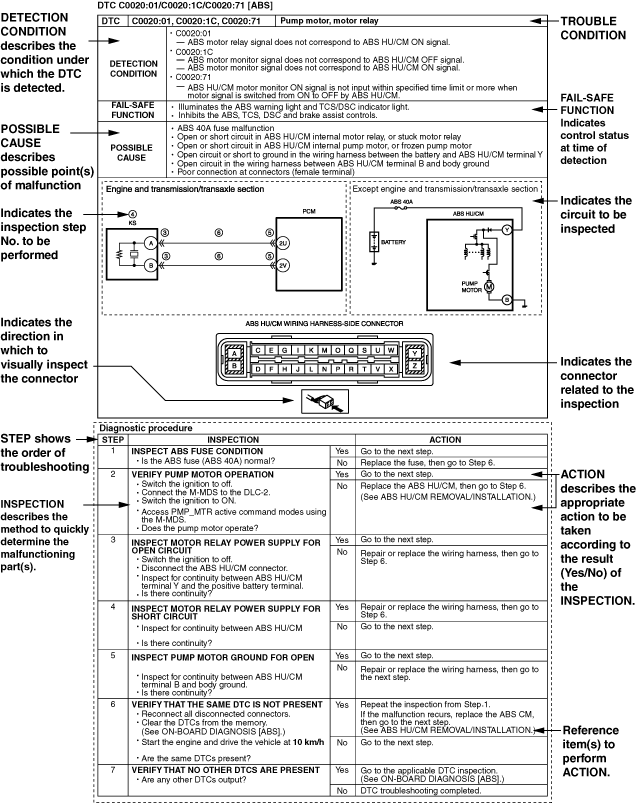

DTC Troubleshooting
• DTC troubleshooting indicates the diagnostic procedure, inspection procedure and appropriate measures corresponding to each DTC.
Symptom Troubleshooting Procedure

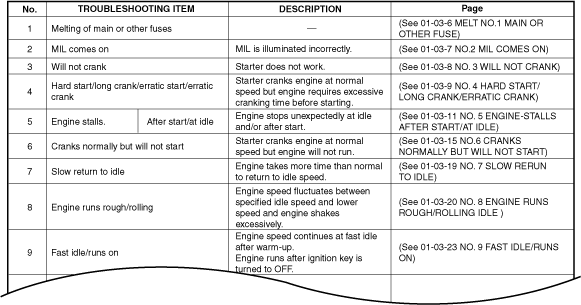

Using the [Symptom Troubleshooting Chart]
-
• Malfunction symptoms described in the symptom troubleshooting procedures are listed.
• Select the applicable item or the closest item for the actual malfunction symptom.
• Accurately select the malfunction symptom using [Detail].

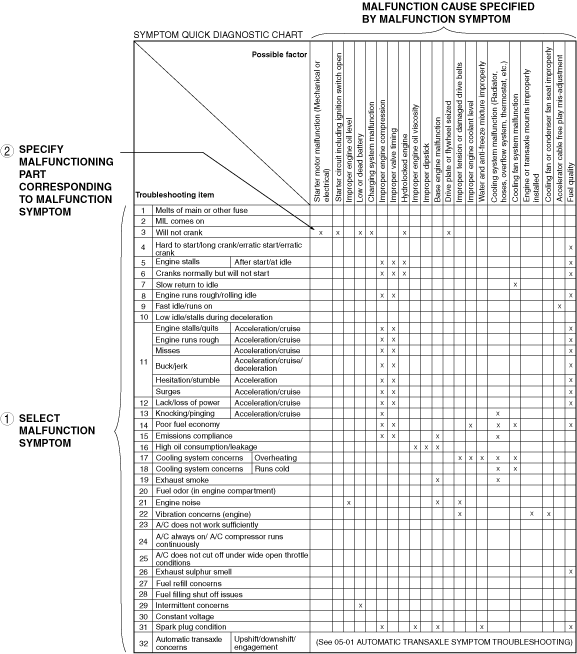

Using the [Malfunction Diagnosis Table]
-
• The related malfunction cause can be determined.
• The relation between the malfunction symptom and cause is indicated.
• The relation between the malfunction symptom and cause can be detected quickly, and if multiple malfunction symptoms occur, the area which is the common cause among the multiple malfunctions can be specified.
• The effective inspection procedure for the malfunction cause specified from the malfunction symptoms can be selected using the inspection procedure chart.

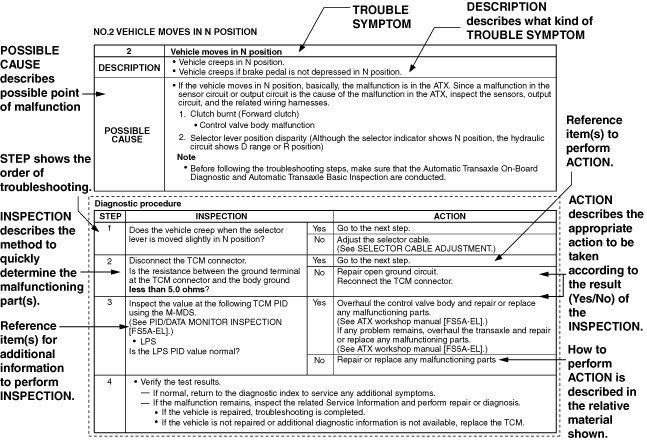

Using the [Symptom Troubleshooting Procedure]
-
• Determine the malfunctioning location quickly and accurately based on each malfunction symptom.
• After performing the repair, verify that the malfunction symptom is eliminated.
• There are the troubleshooting procedures and actions for each malfunctioning part.
• Structured as procedures for verifying malfunction symptom quickly and accurately.
