JACK UP PROCEDURE

id000000701800

Jacking up Using Garage Jack

Warning

•  Improperly jacking a vehicle is dangerous. The vehicle can slip off the jack and cause serious injury. Use only the correct front and rear jacking points and block the wheels.

•  When jacking up a vehicle using a garage jack, park the vehicle on a flat and hard floor surface. If the vehicle is jacked up on an inclined or soft floor surface, the vehicle may become unstable and slip off the jack resulting in serious injury.

•  When jacking up a vehicle using a garage jack, perform the work on a flat floor surface. If the vehicle is jacked up on an uneven floor surface, the garage jack does not move smoothly and the vehicle may slip off the jack resulting in serious injury.

Caution

•  Before jacking up the vehicle using a garage jack, verify the following and if there is any problem, do not use the garage jack to jack up the vehicle.

―  Verify that the garage jack moves smoothly on the floor surface.

―  Verify that the jack-up point is not damaged.

•  Before jacking up the vehicle, remove any cargo and empty the vehicle.

•  Set wheel blocks on the tires opposite to the side being jacked up to prevent the vehicle from moving accidentally while jacking it up.

•  Use safety stands (rigid racks) to support the vehicle after jacking it up.

Jack up procedure for all wheels (2WD)

Caution

•  Use a low-floor type garage jack. Otherwise, the jack unit may contact the front bumper when it is put under the vehicle.

1.  Set the wheel blocks to the front and back of the front wheels.

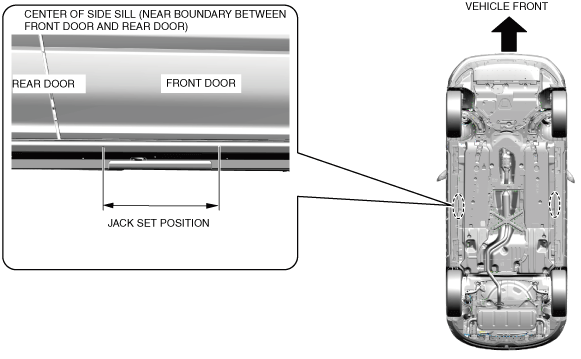

2.  Set the jack to the jack up position of the side sill on the right side shown in the figure and jack up the right rear wheel.

a30zzw00006146

3.  Install the safety stand (rigid rack) to the safety stand (rigid rack) installation position for the right rear wheel shown in the figure.

a30zzw00006147

4.  Set the jack to the jack up position of the side sill on the left side and jack up the left rear wheel.

5.  Install the safety stand (rigid rack) to the safety stand (rigid rack) installation position for the left rear wheel.

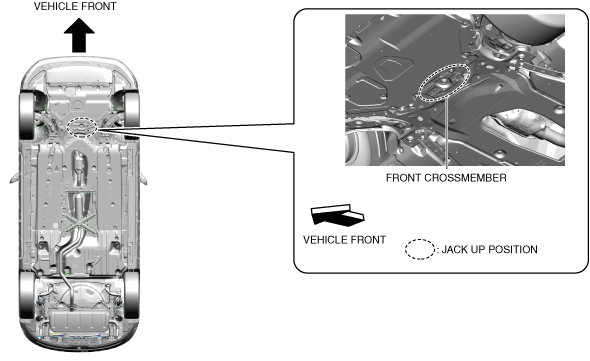

6.  Set the jack to the jack up position of the front crossmember shown in the figure and jack up a front wheel.

a30zzw00006148

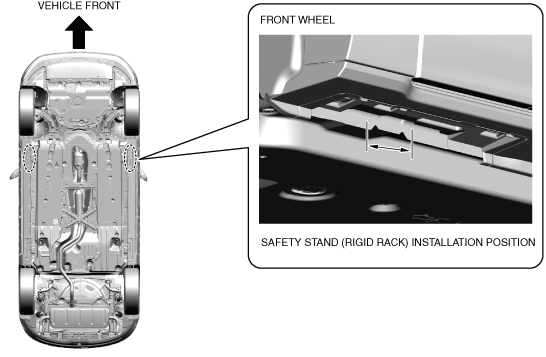

7.  Install the safety stand (rigid rack) to the safety stand (rigid rack) installation position for the front wheel shown in the figure.

a30zzw00006149

Jack up procedure for all wheels (AWD)

Caution

•  Use a low-floor type garage jack. Otherwise, the jack unit may contact the front bumper when it is put under the vehicle.

1.  Set the wheel blocks to the front and back of the rear wheels.

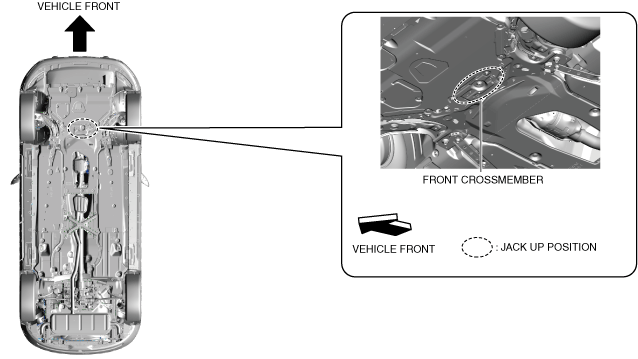

2.  Set the jack to the jack up position of the front crossmember shown in the figure and jack up a front wheel.

a30zzw00006150

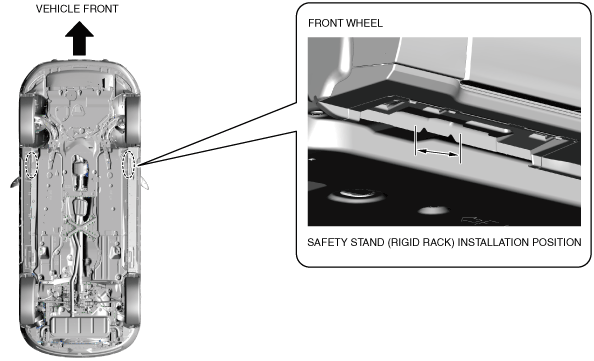

3.  Install the safety stand (rigid rack) to the safety stand (rigid rack) installation position for the front wheel shown in the figure.

a30zzw00006151

Note

•  For AWD vehicles, set the jack to the jack up position of the side sill so that a rear wheel can be jacked up. When the jack cannot be set to the jack up position of the rear differential, refer to the jack up procedure (2WD) for the rear wheel and jack up a rear wheel. (See Jack up procedure for rear wheel (2WD).)

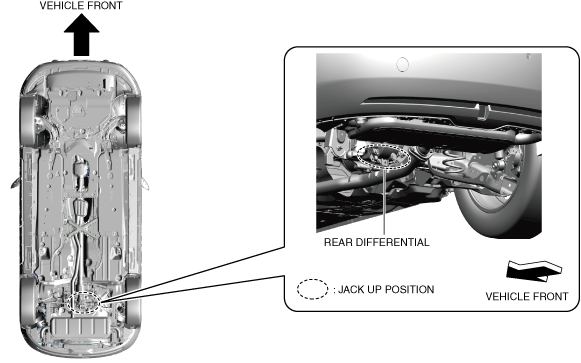

4.  Set the jack to the jack up position of the rear differential shown in the figure and jack up a rear wheel.

a30zzw00006152

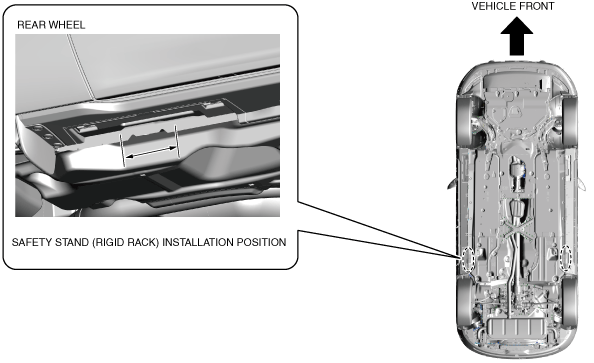

5.  Install the safety stand (rigid rack) to the safety stand (rigid rack) installation position of the rear wheel shown in the figure.

a30zzw00006153

Jack up procedure for front wheel (2WD, AWD)

Caution

•  Use a low-floor type garage jack. Otherwise, the jack unit may contact the front bumper when it is put under the vehicle.

1.  Set the wheel blocks to the front and back of the rear wheels.

2.  Set the jack to the jack up position of the front crossmember shown in the figure and jack up a front wheel.

a30zzw00006148

3.  Install the safety stand (rigid rack) to the safety stand (rigid rack) installation position for the front wheel shown in the figure.

a30zzw00006149

Jack up procedure for rear wheel (2WD)

1.  Set the wheel blocks to the front and back of the front wheels.

2.  Set the jack to the jack up position of the side sill on the right side shown in the figure and jack up the right rear wheel.

a30zzw00006146

3.  Install the safety stand (rigid rack) to the safety stand (rigid rack) installation position for the right rear wheel shown in the figure.

a30zzw00006147

4.  Set the jack to the jack up position of the side sill on the left side and jack up the left rear wheel.

5.  Install the safety stand (rigid rack) to the safety stand (rigid rack) installation position for the left rear wheel.

Jack up procedure for rear wheel (AWD)

Note

•  For AWD vehicles, set the jack to the jack up position of the side sill so that a rear wheel can be jacked up. When the jack cannot be set to the jack up position of the rear differential, refer to the jack up procedure (2WD) for the rear wheel and jack up a rear wheel. (See Jack up procedure for rear wheel (2WD).)

1.  Set the wheel blocks to the front and back of the front wheels.

2.  Set the jack to the jack up position of the rear differential shown in the figure and jack up a rear wheel.

a30zzw00006152

3.  Install the safety stand (rigid rack) to the safety stand (rigid rack) installation position of the rear wheel shown in the figure.

a30zzw00006153
